Product Information

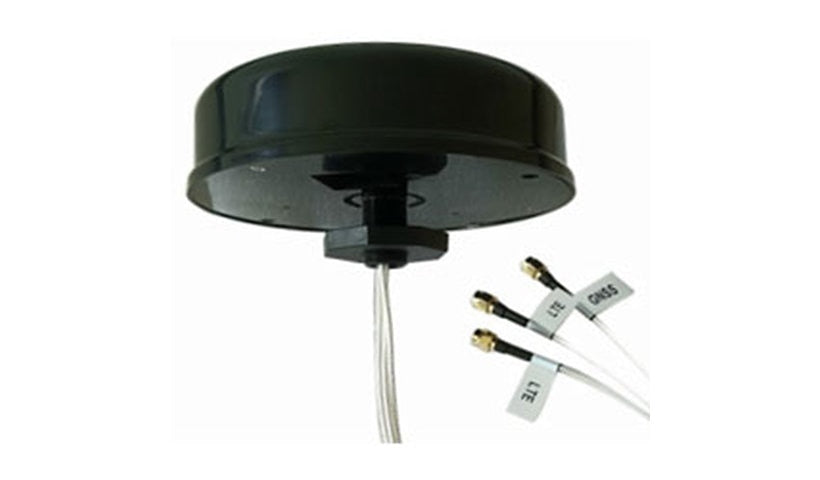

The Ventev VenSlim 3-in-1 is a slim, ground plane independent omni antenna with two ultra wideband elements (617 to 7125 MHz) for 4G, 5G and Wi-Fi 6E plus a GNSS element with 26 dB LNA. It is IP66 rated with a UV stable cover, has three SMA male leads on 10 ft cables and stud mounts with a sealing gasket for fleet use.
Key Features
- 2x2 ultra wideband + GNSS
- 617 to 7125 MHz
- 4G, 5G, Wi-Fi 6E
- IP66, UV stable
- 3 x SMA male, 10 ft cables
- Stud mount, sealing gasket
Product Information
Brand: Ventev
Manufacturer: Ventev
Product Line: Ventev VenSlim
Model: Multiband 3-in-1
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Antenna Gain: 6 dBi
Antenna Placement: Indoor / outdoor, Stud mounting
Antenna Compatibility: GNSS, GPS
Frequency Range: 1710 - 2700 MHz, 3300 - 4200 MHz, 4900 - 7125 MHz, 617 - 698 MHz, 698 - 960 MHz
Signaling Type: Cellular, Wi-Fi
Directivity: Omni-directional
Features: Linear vertical polarization
Connectivity
Antenna Cable Length: 10 ft
Connector Provided: 3 x SMA male
Technical Information
Impedance: 50 ohm
Antenna Form Type: Radome
Horizontal Beamwidth: 360°
Voltage Standing Wave Ratio (VSWR): 2.2:1 (for 617 MHz -698 MHz), 2.0:1 (698 MHz - 960 MHz), 2.0:1 (for 1710 MHz - 2700 Mhz), 1.8:1 (for 3300 Mhz - 4200 Mhz), 2.0:1 (for 4900 Mhz - 7125 Mhz)
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 185 degree Fahrenheit
Physical Characteristics
Materials: UV Stable ABS
Dimensions and Weight
Height: 1.6 inch
Width: 5.5 inch
Depth: 5.5 inch
Weight: 9.59 ounce
Certifications and Listing
Compliant Standards: IP66
