Product Information

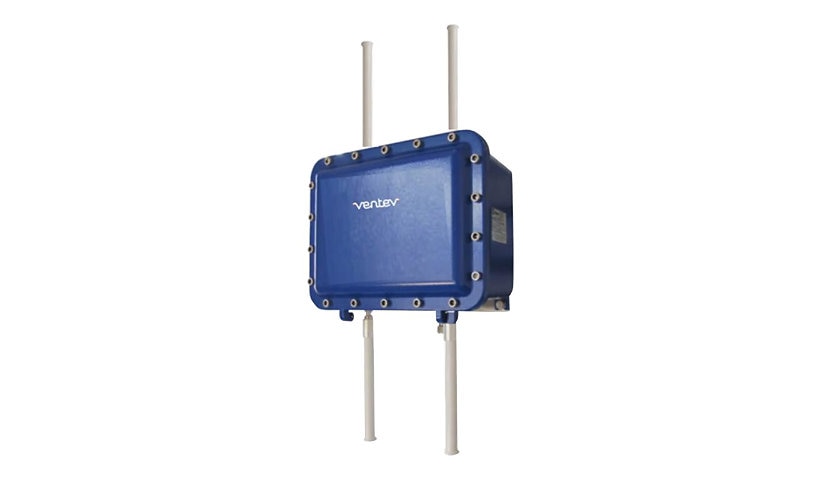

The Ventev VNV-C1D1-MR86 is an explosion proof epoxy powder coated aluminum enclosure for the Meraki MR86 access point, not an antenna. It has four N female antenna ports, a ground lug, an M20 to 3/4 inch NPT adapter and a wall mount, and mounts on a wall or pole indoors or outdoors. The quick specs say it comes with the MR86 access point, so please confirm whether the AP is included.
Key Features
- Enclosure, not an antenna
- Explosion proof
- For Meraki MR86
- 4 N female ports
- Ground lug, NPT adapter
- Confirm if AP included
Product Information
Brand: Ventev
Manufacturer: Ventev
Product Line: Ventev
Product Type: Network device enclosure
Category of Accessory: Mounting hardware
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Features: Epoxy powder coated, Explosionproof, Ground lug
Connectivity
Connector Provided: 4 x N-Series connector female
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Mounting Kit: Included
Placement: Pole mountable, Wall mountable
Materials: Aluminum alloy
Dimensions and Weight
Height: 19.7 inch
Width: 22.8 inch
Depth: 15.7 inch
Weight: 63.93 lbs
Included Items
Package Content: M20-3/4" NPT adapter, Wall Mount
Certifications and Listing
Compliant Standards: ATEX Directive, ATEX Zone 1, ATEX Zone 2, ATEX zone 21, ATEX zone 22, cMETus Class I, II, Div 1, Groups B G, cMETus Class I, II, Zone 1/21 Groups IIB+H2, III, IECEx, IECEx zone 1/21, IECEx zone 2/22, II 2 (1) GD Ex d ia IIC Ga IIB+H2 T5 Gb, II 2 (1) GD Ex tb ia Da IIIC T100 T100°C Db, IP66, NEMA Type 4X
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
