Product Information

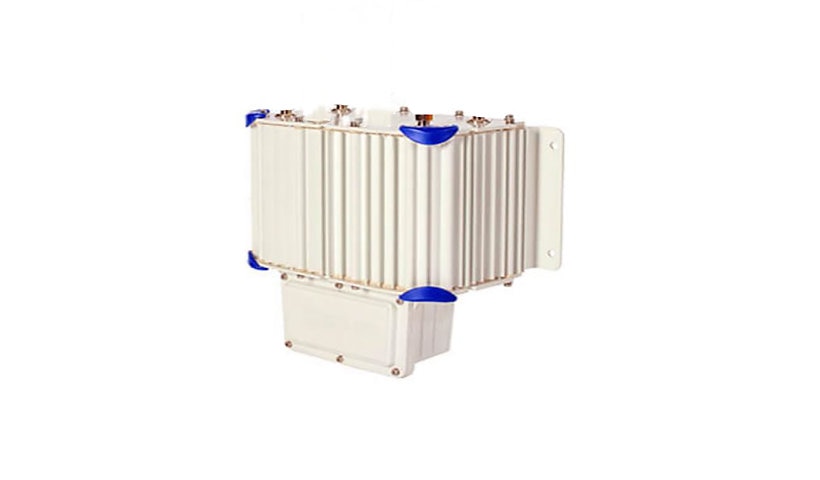

The Ventev VNV-C1D2-MR86 Div 2 is a certified enclosure for deploying a Meraki MR86 access point in Division 2 and Zone 2 hazardous areas such as oil and gas, mining, chemical and pharmaceutical plants, not an antenna. It is marine grade copper free aluminum with a polyester powder coat, four N female antenna ports, a grounding lug and a tapped hole, and mounts on a wall or pole. The description says the MR86 AP is included, so please confirm.
Key Features
- Enclosure, not an antenna
- Division 2 and Zone 2
- For Meraki MR86
- 4 N female ports
- Marine grade aluminum
- Confirm if AP included
Product Information
Brand: Ventev
Manufacturer: Ventev
Product Line: Ventev
Model: Div 2
Product Type: Network device enclosure
Category of Accessory: Mounting hardware
Packaged Quantity: 1
Color Category: Blue, White
Network and Communication
Features: Grounding lug, Ingress protection, Polyester powder coated, Tapped hole
Connectivity
Connector Provided: 4 x N connector female
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor, Outdoor
Placement: Pole mountable, Wall mountable
Materials: Marine grade copper-free aluminum
Dimensions and Weight
Height: 15.7 inch
Width: 22.8 inch
Depth: 19.7 inch
Weight: 39.9 lbs
Certifications and Listing
Compliant Standards: cMETus Class I, Div 2, Groups A-D, cMETus Class I, Zone 2 AEx ec ic nR IIC T6 Gc, cMETus Class II, Div 2, Groups F-G, cMETus Class II, Zone 22 AEx ec ic tc IIIC T85°C Dc, Ex II 3 (3) D Ex [ic Dc] tc IIIC T85°C Dc, Ex II 3 (3) G Ex ec [ic Gc] nR IIC T6 Gc, IEEE 802.3at, IP66, NEMA Type 4X
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
