Product Information

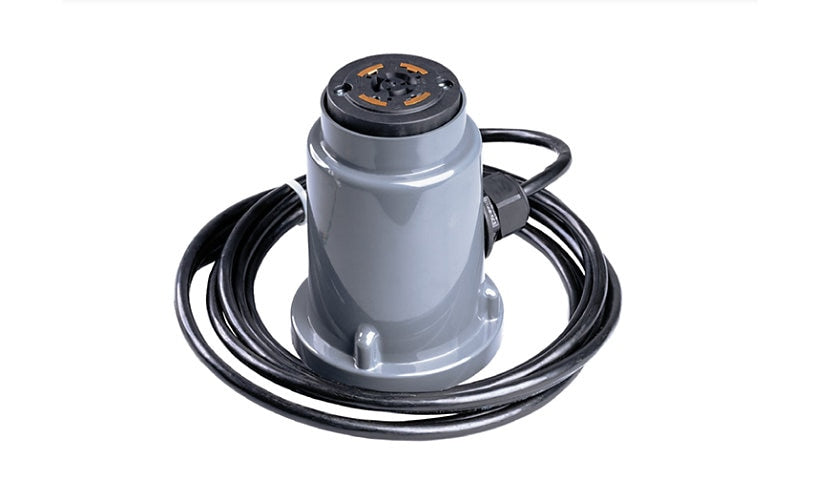

The Verkada ACCX-TAP-DC100-E taps into a streetlight's 7-pin circuit to power the GC31-E Cellular Gateway. It converts 105 to 240 V AC to 48 V DC delivered over PoE at up to 100 W, with a twist lock plug for outdoor use from -30 to 50 C.
Key Features
- 100 W PoE output, 48 V DC
- 7-pin light pole connection
- AC 105 to 240 V input
- For Verkada GC31-E Cellular Gateway
- Outdoor twist lock plug
- Operates from -30 to 50 C
Product Information
Brand: Verkada
Product Line: Verkada
Product Type: Power Adapter
Subcategory: Power adapters
Packaged Quantity: 1
Connectivity
Power Over Ethernet (PoE): PoE
Power
Input Wiring: 1-phase
Required Voltage: AC 105-240 volt
Power Device Features: Outdoor, Twist lock plug
Input Connector Type: Power 7 pin connector
Power Output Connectors Details: 1 x RJ-45 - 48 V 100 W
Power Provided: 100 watt
Form Factor (Power Device): External
Provided Voltage: DC 48 volt
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Dimensions and Weight
Height: 4.5 inch
Width: 5.3 inch
Depth: 5.3 inch
Weight: 17.64 ounce
Certifications and Listing
Compliant Standards: ANSI C136.10
