Product Information

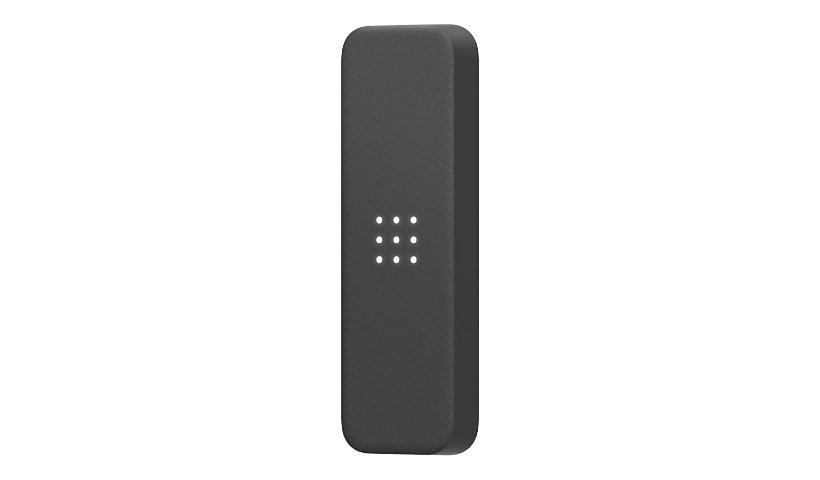

The Verkada AD34-G is the government version of the AD34 multi-format reader, supporting low and high frequency credentials including MIFARE and DESFire, 125 kHz cards and Bluetooth LE, linked over RS-485 with OSDP v2. It runs on 12 V, mounts on a mullion or single gang box, is TAA compliant and carries a 10 year warranty.
Key Features
- Government version, PIV per title
- LF 125 kHz and HF, MIFARE, DESFire
- Bluetooth LE
- RS-485, OSDP v2, 12 V
- Mullion or single gang, T10 key included
- TAA compliant, 10 year warranty
Product Information
Brand: Verkada
Product Line: Verkada
Model: AD34-G
Color Category: Black
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth
Wireless LAN: Bluetooth LE, DESFire, Mifare
Frequency Band: 125 KHz
Features: High-Frequency (HF) credentials supported, Low-Frequency (LF) credentials supported, Open Supervised Device Protocol (OSDP) v.2
Connectivity
Interfaces: Serial (RS-485)
Power
Required Voltage: 12 volt
Technical Information
Rated Current: 250 milliampere
Touchscreen: No
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 90% RH (non-condensing)
Dimensions and Weight
Dimensions Details: Mullion: 1.6 in x 0.7 in x 5.2 in x 2.8 oz, Single gang mount: 3.2 in x 0.8 in x 5.7 in x 3.5 oz
Included Items
Included Accessories: Mounting kit, T10 security torx key
Certifications and Listing
Compliant Standards: CAN/ULC 60839-11-1, FCC, ICES, IK08, IP65, NDAA, PIV, RCM, UKCA, UL 294, UL/IEC 62368-1, VCCI
TAA Compliant: Yes
Warranty
Limited Warranty: 10 Year
Not sure this item fits your setup? Send us the model of your current access control system, reader or host device and how you plan to use it, and the DatorPro team will help you confirm compatibility before you order.
