Product Information

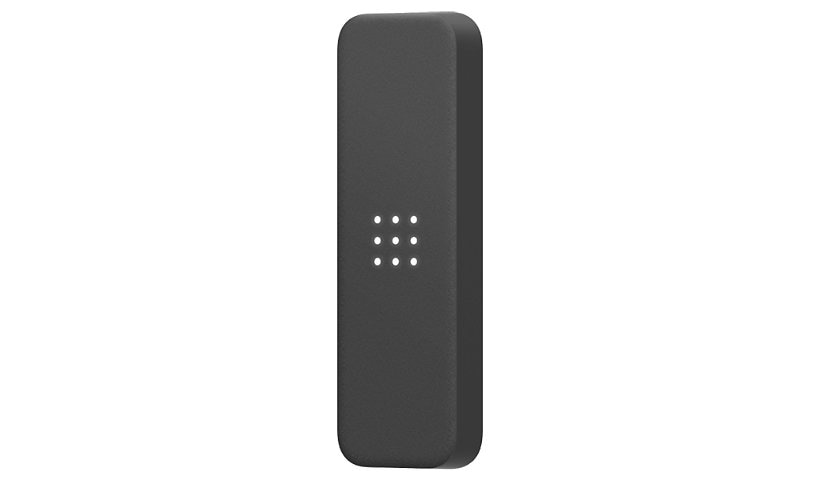

The Verkada AD34 is a multi-format reader that supports low frequency, high frequency, NFC and Bluetooth intent unlock credentials, and links by RS-485 using OSDP v2 secure channel to a Verkada controller or Verkada intercom. The quick specs cite IP65 and IK08, and it comes with mullion and single gang plates. It carries a 10 year warranty.
Key Features
- LF 125 kHz, HF, NFC and Bluetooth
- OSDP v2 secure channel over RS-485
- Needs a Verkada controller or intercom
- IP65 and IK08 per quick specs
- Mullion and single gang plates included
- 12 V, 10 year warranty
Product Information
Brand: Verkada
Product Line: Verkada
Model: AD34
Product Type: Door sensor
Packaged Quantity: 1
Color Category: Black
Network and Communication
Features #2: 125 kHz card technology, LED Indicator
Connectivity Technology: Wireless
Wireless LAN: Bluetooth, DESFire, Mifare
Features: High-Frequency (HF) credentials supported, Low-Frequency (LF) credentials supported, Near Field Communication (NFC) credentials supported, Open Supervised Device Protocol (OSDP) v.2
Features: 125 kHz card technology, LED Indicator
Power
Power Source: Hardwired
Required Voltage: 12 volt
Technical Information
Rated Current: 250 milliampere
Touchscreen: No
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 90% RH (non-condensing)
Dimensions and Weight
Dimensions Details: Mullion: 1.6 in x 0.7 in x 5.2 in x 2.8 oz, Single gang mount: 3.2 in x 0.8 in x 5.7 in x 3.5 oz
Included Items
Package Content: 2 M3 machine screws, 2 mounting screws, Mullion mounting plate, Single gang mounting plate, T10 screwdriver
Certifications and Listing
Compliant Standards: CAN/ULC 60839-11-1, CSA C22.2, FCC, IK08, IP65, UL 294, UL 62368-1
Warranty
Limited Warranty: 10 Year
