Product Information

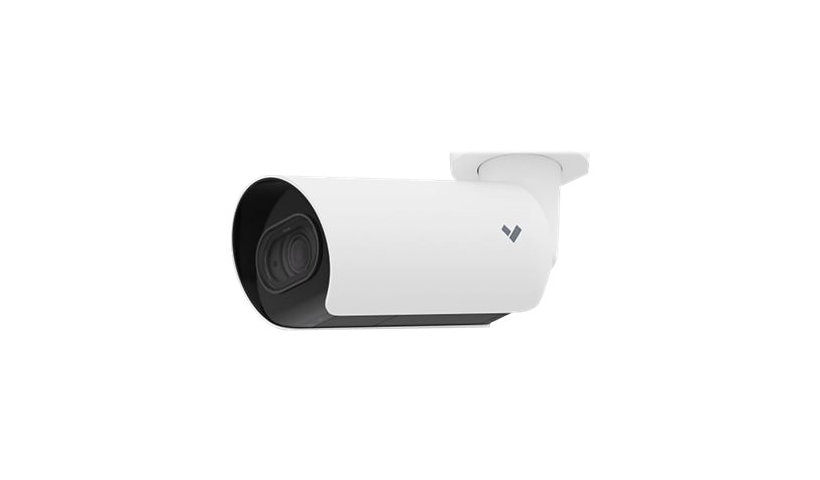

The Verkada CB52-TE is a 5 MP outdoor telephoto bullet recording 2688 x 1944 at 24 fps with an 8 to 20 mm motorized varifocal lens (3x) for distant detail. It has 512 GB onboard for 60 days, IR up to 164 ft, face analytics and people detection, and runs on PoE+ Class 2. Vandal and waterproof, bracket and junction box adapter included. CB52-512TE-HW.
Key Features
- 5 MP, 2688 x 1944
- 8 to 20 mm telephoto
- 512 GB, 60 days storage
- IR up to 164 ft
- Face analytics
- PoE+, vandal proof
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Bullet Series
Model: CB52-TE
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Ambarella CV25S88 CPU, Cloud backup, Crowd detection, Dual video stream, Face analytics, Infrared cut filter, LED Indicator, Live Link, Manual 360° rotation, Motorized zoom, People Detection, Person of Interest detection, Vehicle analytics, Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Technical Information
Angular Field of View (D, Max, Degree): 43
Angular Field of View (H, Max, Degree): 35
Angular Field of View (V, Max, Degree): 26
Infrared Distance: 164 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 17
Auto Iris Control: P-Iris
Max Focal Length: 20 millimetre
Optical Zoom: 3
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 15
Angular Field of View (V, Min, Degree): 11
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: PS CMOS
Lens Aperture: F/1.5-2.8
Min Focal Length: 8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264
Video Input: Color
Touchscreen: No
Max Video Resolution: 2688 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / waterproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.3 inch
Width: 3.3 inch
Depth: 10 inch
Weight: 3.26 lbs
Included Items
Included Accessories: 4 mounting plate screws, 4 screws, Junction box adapter, Junction box cover, Mounting bracket, T25 hand tool
Bundled With: 60 days onboard storage (512GB)
