Product Information

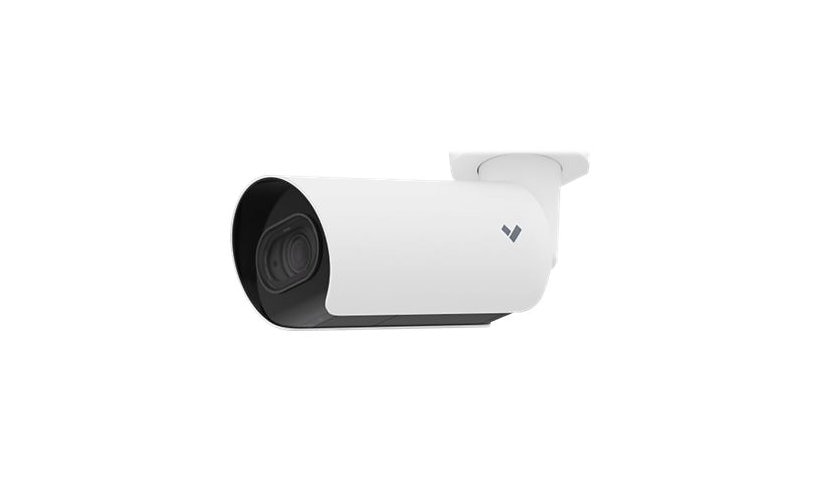

The Verkada CB62-TE is a 4K (8 MP) telephoto bullet camera with an 8 to 20 mm varifocal lens (3x) for distant detail. It has IR up to 164 ft, face analytics, crowd detection, LDC and 512 GB onboard for 30 days, and runs on PoE+ Class 2. Vandal and waterproof aluminum.
Key Features
- 4K, 8 MP
- 8 to 20 mm telephoto
- IR up to 164 ft
- 512 GB, 30 days storage
- Face analytics
- PoE+, vandal and waterproof
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Bullet Series
Model: CB62-TE
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Ambarella CV22S66 CPU, Cloud backup, Crowd detection, Dual video stream, Face analytics, Infrared cut filter, LED Indicator, Lens Distortion Compensation (LDC), Live Link, Manual 360° rotation, Motorized zoom, People Detection, Person of Interest detection, Vehicle analytics, Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, SDXC Memory Card
Flash Memory Installed: 1 TB
Technical Information
Angular Field of View (D, Max, Degree): 46
Angular Field of View (H, Max, Degree): 41
Angular Field of View (V, Max, Degree): 23
Infrared Distance: 164 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 19
Auto Iris Control: P-Iris
Max Focal Length: 20 millimetre
Optical Zoom: 3
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 17
Angular Field of View (V, Min, Degree): 9
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: PS CMOS
Lens Aperture: F/1.5-2.8
Min Focal Length: 8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / waterproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.3 inch
Width: 3.3 inch
Depth: 10 inch
Weight: 3.26 lbs
Included Items
Included Accessories: 4 mounting plate screws, 4 screws, Junction box adapter, Junction box cover, Mounting bracket, T25 hand tool
Bundled With: 30 days onboard storage (512GB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
