Product Information

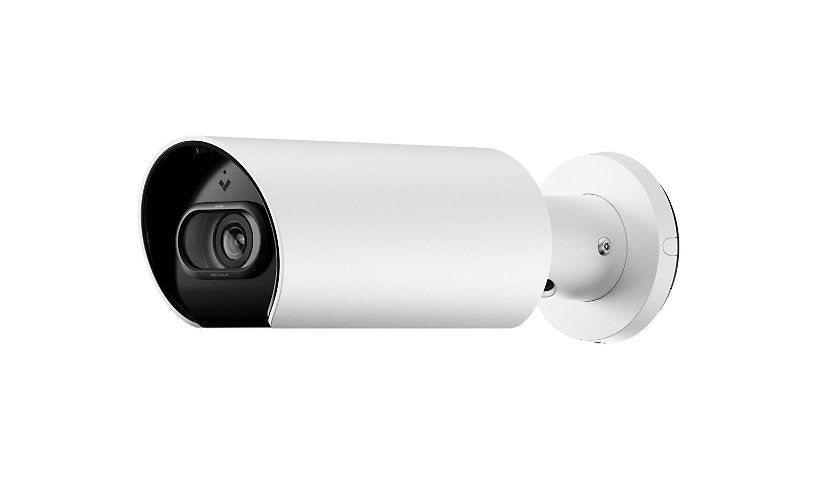

This Verkada CB63-E comes with 1 TB onboard for 60 days and records 4K at 24 fps through a 1/1.2 inch sensor and 5.9 to 13.3 mm motorized varifocal lens. It offers IR up to 164 ft, face and vehicle analytics and cloud backup, powered by Gigabit PoE+ Class 2. Weather and impact resistant, -40 to 50 C.
Key Features
- 4K at 24 fps
- 1 TB, 60 days storage
- 5.9 to 13.3 mm motorized
- IR up to 164 ft
- Face and vehicle analytics
- Gigabit PoE+
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Bullet Series
Model: CB63-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Ambarella CV72S66 CPU, Cloud backup, Crowd detection, Face analytics, LED Indicator, Lens Distortion Compensation (LDC), Live Link, Manual 360° rotation, Motorized zoom, People Detection, Vehicle analytics, Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, SDXC Memory Card
Technical Information
Angular Field of View (D, Max, Degree): 114
Angular Field of View (H, Max, Degree): 110
Angular Field of View (V, Max, Degree): 59
Infrared Distance: 164 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 56
Auto Iris Control: P-Iris
Max Focal Length: 13.3 millimetre
Optical Zoom: 2.25
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 50
Angular Field of View (V, Min, Degree): 28
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Image Sensor Size: 1/1.2"
Image Sensor Type: PS CMOS
Lens Aperture: F/1.5-2.9
Min Focal Length: 5.9 millimetre
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.9 inch
Width: 3.9 inch
Depth: 11.9 inch
Weight: 3.92 lbs
Included Items
Included Accessories: 4 screws, 4 wall anchors, Cable gland, Conduit adapter, Junction box adapter, Junction box cover, T25 L wrench
Bundled With: 60 days onboard storage (1TB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
