Product Information

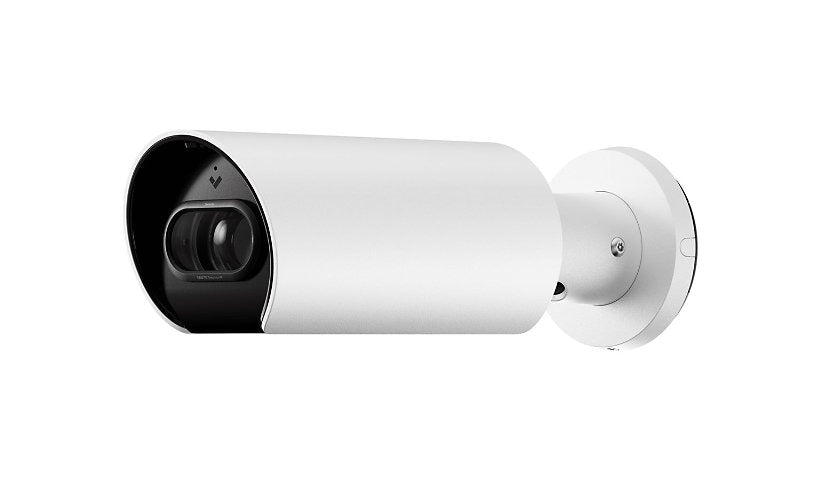

The Verkada CB63-TE is a 4K outdoor telephoto bullet with a large 1/1.2 inch sensor and 15 to 50 mm varifocal lens for detail at long range. It has 2 TB onboard for 365 days, IR up to 328 ft, license plate capture, face search, live face blur and line crossing detection, and runs on Gigabit PoE. Weather and impact resistant. CB63-2TBTE-HW.
Key Features
- 4K, 1/1.2 inch sensor
- 15 to 50 mm telephoto
- IR up to 328 ft
- 2 TB, 365 days storage
- License plate capture
- PoE, outdoor
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CB63-TE
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: AI-powered alerts, Attribute search, Audit log, Cloud backup, Configurable retention days, Crowd detection, Face search, IR-cut filter, License Plate Capture (LPC), Line-crossing detection, Live face blur, Live Link, Low bandwidth mode, Motion Detection, Motion Search, Motorized zoom, Occupancy Trends, People Detection, People search, Person of Interest detection, Privacy regions, RTSP authentication, Selectable storage location, Selective face blurring, Timelapse, Trajectory analysis, Vehicle Detection, Vehicle search
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, SDXC Memory Card
Technical Information
Angular Field of View (D, Max, Degree): 46
Angular Field of View (H, Max, Degree): 41
Angular Field of View (V, Max, Degree): 23
Infrared Distance: 328 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 15
Auto Iris Control: P-Iris
Max Focal Length: 50 millimetre
Tilt: 0 to 90
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 13
Angular Field of View (V, Min, Degree): 7
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Image Sensor Size: 1/1.2"
Image Sensor Type: PS CMOS
Lens Aperture: F/1.38-1.5
Min Focal Length: 15 millimetre
Sensor Size (metric): 21.2 mm (1/1.2")
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weather resistant / impact resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.9 inch
Width: 3.9 inch
Depth: 11.9 inch
Weight: 4.14 lbs
Included Items
Included Accessories: 4 #8 wall screws, 4 M4 machine screws, 4 wall anchors, Cable gland, Conduit adapter, Junction box adapter, Junction box cover, T25 L wrench
Bundled With: 365 days onboard storage (2TB)
