Product Information

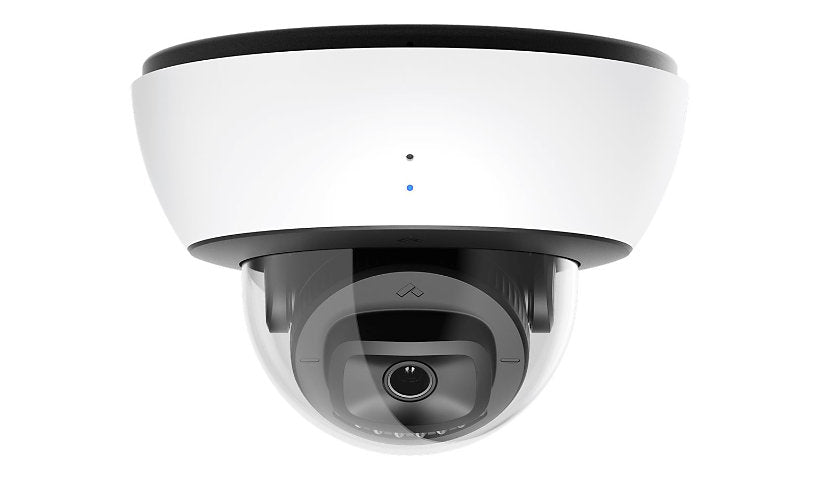

The Verkada CD43-F is a 5 MP indoor dome recording 2688 x 1944 at 24 fps through a 3.2 mm lens with a 101 degree view, with 512 GB onboard for 60 days. It has IR up to 66 ft, a mic, AI search, crowd detection and cloud backup, and runs on PoE+. Mount plate and tools included. TAA compliant. CD43-512-HW-F.
Key Features
- 5 MP, 2688 x 1944
- 3.2 mm, 101 degree view
- 512 GB, 60 days storage
- IR up to 66 ft, mic
- AI search
- PoE+, TAA compliant
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Dome Series
Model: CD43-F
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2
Features: 2 streams, 350° rotation, AI-powered search, Aluminum housing, Ambarella CV75S88 CPU, Audit log, Cloud backup, Configurable retention days, Crowd detection, IR-cut filter, LED Indicator, Line-crossing detection, Live Link, Loitering detection, Low bandwidth mode, Motion Detection, Occupancy Trends, People analytics, People search, Person of Interest detection, Plastic dome trim, Selectable storage location, Trajectory analysis, Vehicle analytics
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Plus
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 512 GB
Technical Information
Angular Field of View (D, Max, Degree): 130
Angular Field of View (H, Max, Degree): 101
Angular Field of View (V, Max, Degree): 73
Infrared Distance: 66 ft
Infrared LEDs: Yes
Tilt: 60
Motion Detection: Yes
Panning Range (degree): 360
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 2688 x 1944
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1944
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Impact protection
Form Factor: Dome
Camera Mechanical Design: Fixed
Included Items
Included Accessories: Mount plate with leveler, Screw pack, Torx T10 screw driver
Bundled With: 60 days onboard storage (512GB)
