Product Information

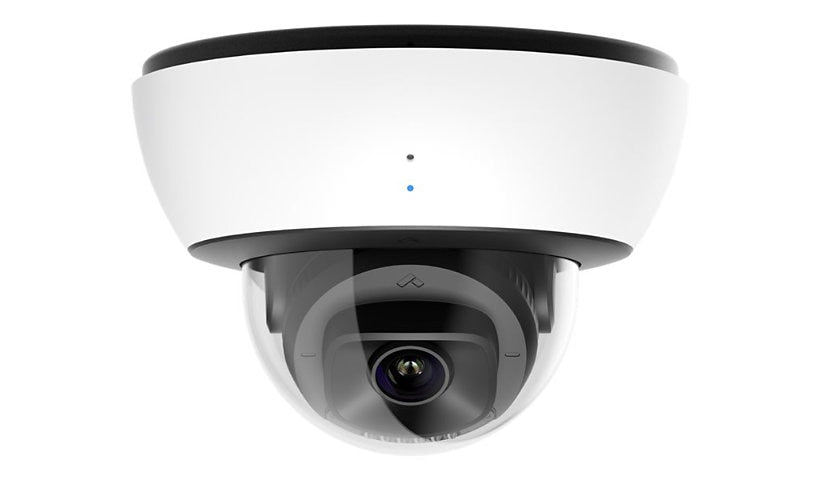

This Verkada Government Grade CD53-F has 256 GB onboard for 30 days and records 5 MP (2688 x 1944) at 24 fps through a 2.8 to 8 mm motorized varifocal lens. It has IR up to 98 ft, a mic, AI search, line crossing and loitering detection and FedRAMP Ready status, on Gigabit PoE+. Indoor, tamper and impact resistant. TAA compliant. CD53-256-HW-F.
Key Features
- 5 MP, 2688 x 1944
- 256 GB, 30 days storage
- 2.8 to 8 mm motorized
- IR up to 98 ft, mic
- FedRAMP Ready
- PoE+, TAA compliant
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Government-Grade Dome Series
Model: CD53-F
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2
Features: 2 streams, 350° rotation, AI-powered search, Aluminum housing, Ambarella CV75S88 CPU, Audit log, Cloud backup, Configurable retention days, Crowd detection, FedRAMP Ready status, IR-cut filter, LED Indicator, Line-crossing detection, Live Link, Loitering detection, Low bandwidth mode, Motion Detection, Occupancy Trends, People analytics, People search, Person of Interest detection, Plastic dome trim, Selectable storage location, Trajectory analysis, Vehicle analytics, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 256 GB
Technical Information
Angular Field of View (D, Max, Degree): 140
Angular Field of View (H, Max, Degree): 109
Angular Field of View (V, Max, Degree): 80
Focus Modes: Motorized
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 48
Auto Iris Control: P-Iris
Max Focal Length: 8 millimetre
Optical Zoom: 2.86
Tilt: 60
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 39
Angular Field of View (V, Min, Degree): 29
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.3-2.4
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 2688 x 1944
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Tamper-resistant / impact resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.3 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 33.97 ounce
Included Items
Included Accessories: Mount plate with leveler, Screw pack, Torx T10 screw driver
Bundled With: 30 days onboard storage (256GB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
