Product Information

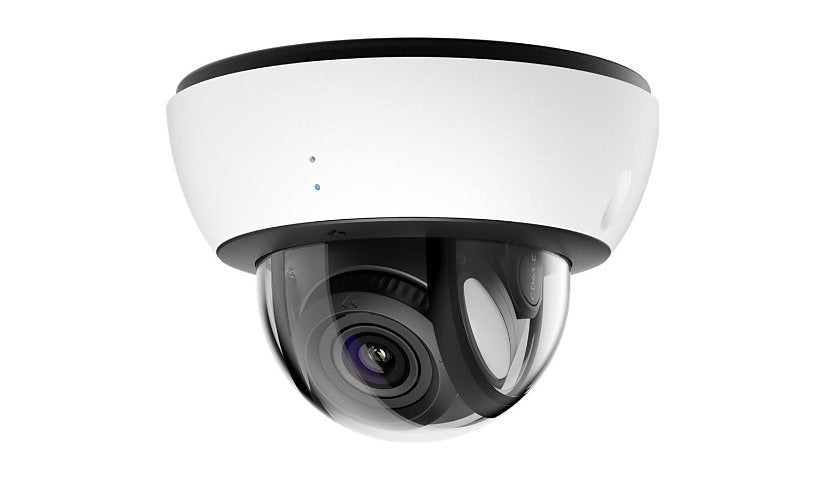

The Verkada CD63 is a 4K indoor dome with a large 1/1.2 inch sensor and a 5.9 to 13.3 mm vari focal lens (2.25x), recording at 24 fps. It has 2 TB onboard for 90 days, IR up to 131 ft, a mic with mute control and people and vehicle detection, and runs on PoE. Mounting bracket and tools included.
Key Features
- 4K at 24 fps
- 1/1.2 inch sensor
- 5.9 to 13.3 mm, 2.25x
- 2 TB, 90 days storage
- IR up to 131 ft, mic
- PoE, indoor
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CD63
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired, Wireless
Features: Aluminum housing, Ambarella CV72S66 CPU, Infrared cut filter, LED Indicator, Leveling assistant, Microphone mute control, People Detection, Plastic dome trim, Progressive scanning, Vehicle Detection, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Flash Memory Installed: 512 GB
Technical Information
Angular Field of View (D, Max, Degree): 113
Angular Field of View (H, Max, Degree): 109
Angular Field of View (V, Max, Degree): 58
Infrared Distance: 131 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 80
Auto Iris Control: P-Iris
Max Focal Length: 13.3 millimetre
Optical Zoom: 2.25
Tilt: 65
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 72
Angular Field of View (V, Min, Degree): 44
Camera Iris: Auto iris
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Video Modes: 4K
Image Sensor Size: 1/1.2"
Image Sensor Type: CMOS
Lens Aperture: F/1.5-2.9
Min Focal Length: 5.9 millimetre
Sensor Size (metric): 2.1 mm (1/1.2")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.5 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 3.06 lbs
Included Items
Included Accessories: Cable sealing rubber for 6.5-7.5mm, Conduit adapter, Desiccant, Mounting bracket, Screw pack, Torx T10 screw driver
Bundled With: 90 days onboard storage (2TB)
