Product Information

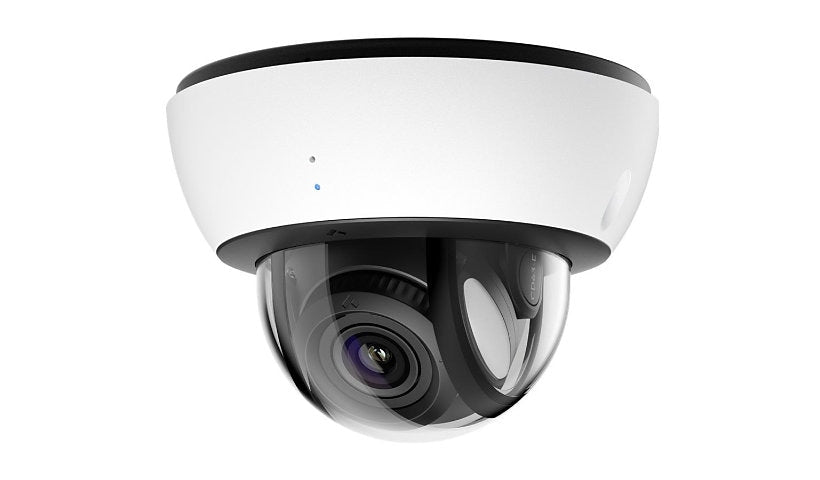

This Verkada CD63 has 3 TB onboard for 120 days. It is a 4K indoor dome with a large 1/1.2 inch sensor and 5.9 to 13.3 mm motorized varifocal lens, recording at 24 fps, with IR up to 131 ft, a mic, AI search, crowd, line crossing and loitering detection, on Gigabit PoE+. Mount plate and tools included.
Key Features
- 4K at 24 fps
- 1/1.2 inch sensor
- 3 TB, 120 days storage
- IR up to 131 ft, mic
- AI search, loitering
- PoE+, indoor
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CD63
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired, Wireless
Features: 2 streams, 350° rotation, AI-powered search, Aluminum housing, Ambarella CV72S66 CPU, Audit log, Cloud backup, Configurable retention days, Crowd detection, IR-cut filter, LED Indicator, Line-crossing detection, Live Link, Loitering detection, Low bandwidth mode, Motion Detection, Occupancy Trends, People analytics, People search, Person of Interest detection, Plastic dome trim, Selectable storage location, Trajectory analysis, Vehicle analytics
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 3 TB
Technical Information
Angular Field of View (D, Max, Degree): 113
Angular Field of View (H, Max, Degree): 109
Angular Field of View (V, Max, Degree): 58
Focus Modes: Motorized
Infrared Distance: 131 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 80
Auto Iris Control: P-Iris
Max Focal Length: 13.3 millimetre
Optical Zoom: 2.25
Tilt: 65
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 72
Angular Field of View (V, Min, Degree): 44
Camera Iris: Auto iris
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Video Modes: 4K
Image Sensor Size: 1/1.2"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.5-2.9
Min Focal Length: 5.9 millimetre
Sensor Size (metric): 2.1 mm (1/1.2")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Protection: Impact protection
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.5 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 2.92 lbs
Included Items
Included Accessories: Cable sealing rubber for 6.5-7.5mm, Conduit adapter, Desiccant, Mount plate with leveler, Screw pack, Torx T10 screw driver
Bundled With: 120 days onboard storage (3TB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
