Product Information

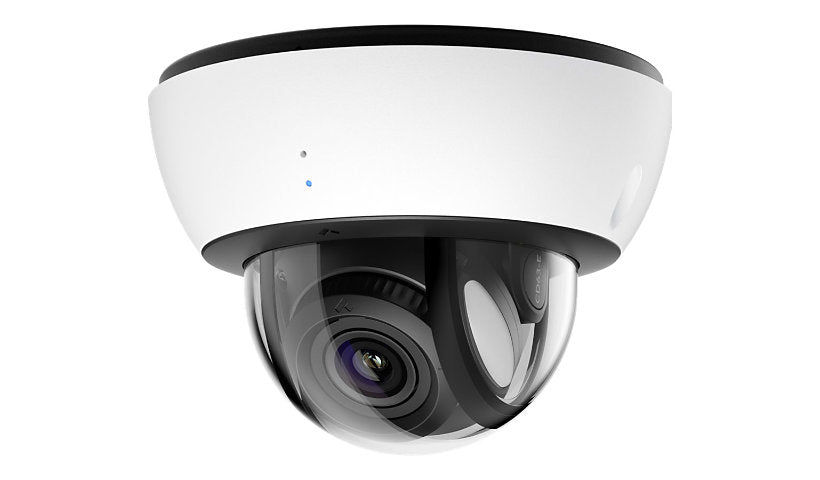

The Verkada CD63-E is a 4K outdoor dome camera with a 1/1.2 inch sensor, 5.9 to 13.3 mm varifocal lens and IR up to 131 ft. It records at 24 fps in H.264 and H.265, has a built in microphone and detects people and vehicles, running on PoE over Gigabit Ethernet from -40 to 50 C. The listing names 2TB and 90 days storage while the text says 512 GB flash, so please confirm.
Key Features
- 4K at 24 fps
- 5.9 to 13.3 mm varifocal
- IR up to 131 ft
- People and vehicle detection
- Gigabit PoE, microphone
- Weatherproof, -40 to 50 C
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CD63-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired, Wireless
Features: Aluminum housing, Ambarella CV72S66 CPU, Infrared cut filter, LED Indicator, Leveling assistant, Microphone mute control, People Detection, Plastic dome trim, Progressive scanning, Vehicle Detection, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Technical Information
Angular Field of View (D, Max, Degree): 107
Angular Field of View (H, Max, Degree): 109
Angular Field of View (V, Max, Degree): 58
Infrared Distance: 131 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 80
Auto Iris Control: P-Iris
Max Focal Length: 13.3 millimetre
Optical Zoom: 2.25
Camera Type: Network surveillance camera
Tilt: 65
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 72
Angular Field of View (V, Min, Degree): 44
Camera Iris: Auto iris
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Video Modes: 4K
Image Sensor Size: 1/1.2"
Image Sensor Type: CMOS
Lens Aperture: F/1.5-2.9
Min Focal Length: 5.9 millimetre
Sensor Size (metric): 2.1 mm (1/1.2")
Night Vision: Yes
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.5 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 3.06 lbs
Included Items
Included Accessories: Cable sealing rubber for 6.5-7.5mm, Conduit adapter, Desiccant, Mounting bracket, Screw pack, Torx T10 screw driver
Bundled With: 90 days onboard storage (2TB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
