Product Information

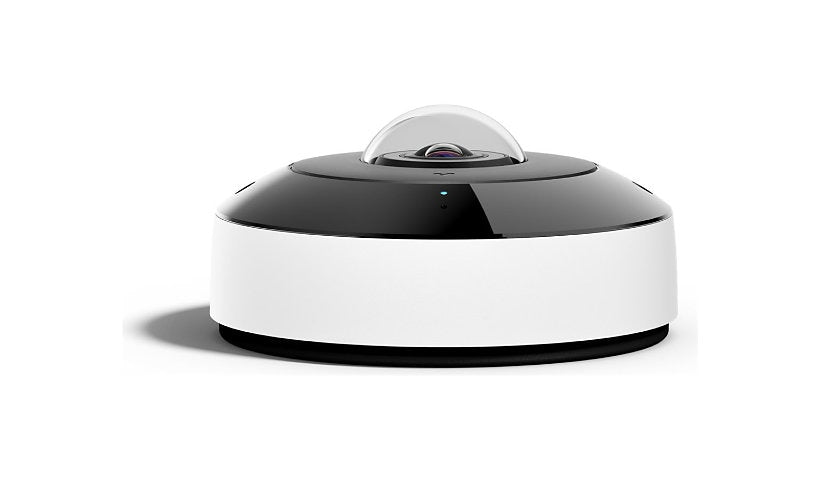

The Verkada CF83-E is a 12.5 MP outdoor fisheye recording 3520 x 2640 at 24 fps through a 1.7 mm lens with a 180 degree panoramic view. It has 2 TB onboard for 90 days, 120 dB dynamic range, IR up to 66 ft, a mic and AI powered search and alerts, and runs on PoE+ from -40 to 50 C. Impact protected.
Key Features
- 12.5 MP, 3520 x 2640
- 180 degree panoramic
- 2 TB, 90 days storage
- IR up to 66 ft, mic
- AI search and alerts
- PoE+, -40 to 50 C
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CF83-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 120 dB dynamic range, 180° panoramic view mode, AI-powered alerts, AI-powered search, Aluminum/plastic housing, Ambarella CV72S66 CPU, Attribute search, Audit log, Cloud backup, Configurable retention days, Crowd detection, Digital PTZ function, Dual exposure, Face search, IR-cut filter, LED Indicator, Live Link, Low bandwidth mode, Motion Detection, Motion Search, People Detection, People search, Person of Interest detection, Privacy regions, Progressive scanning, Selectable storage location, Selective face blurring, Timelapse, Trajectory analysis, True Wide Dynamic Range (TWDR), Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Technical Information
Infrared Distance: 66 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 180
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 180
Angular Field of View (V, Min, Degree): 180
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 12,500,000 pixels
Image Sensor Size: 1/6"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/2.0
Min Focal Length: 1.7 millimetre
Sensor Size (metric): 4.2 mm (1/6")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/120 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3520 x 2640
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Impact protection
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2.7 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 3.02 lbs
Included Items
Included Accessories: Cable sealing rubber for 6.5-7.5mm, Conduit adapter, Mount plate with leveler, Screw pack, Torx T10 screw driver
Bundled With: 90 days onboard storage (2TB)
