Product Information

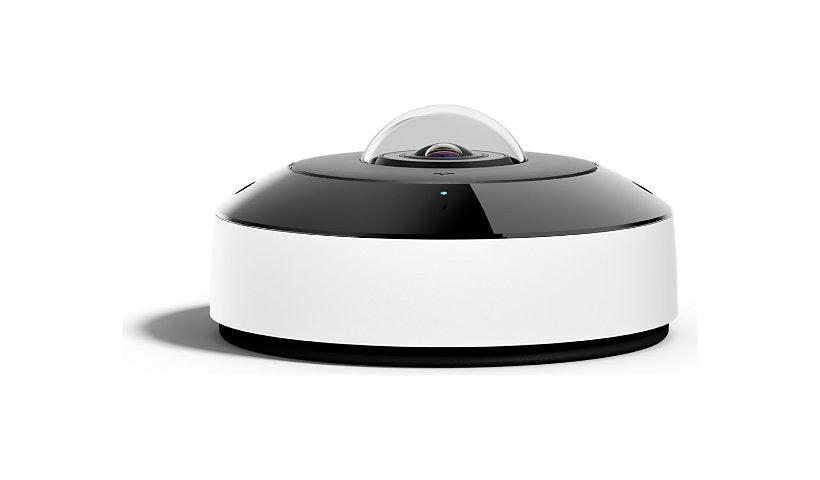

This Verkada CF83-E fisheye camera comes with 3 TB onboard for 120 days of storage and records 12.5 MP (3520 x 2640) at 24 fps with a 180 degree view through a 1.7 mm F2.0 lens. It has 120 dB dynamic range, IR up to 66 ft, a mic and AI search, and runs on Gigabit PoE+. Rated -40 to 50 C.
Key Features
- 12.5 MP fisheye
- 180 degree view
- 3 TB, 120 days storage
- 120 dB dynamic range
- IR up to 66 ft, mic
- Gigabit PoE+
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CF83-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 120 dB dynamic range, 180° field of view (diagonal), 180° field of view (horizontal), 180° field of view (vertical), 180° panoramic view mode, AI-powered alerts, AI-powered search, Ambarella CV72S66 CPU, Attribute search, Digital PTZ function, Dual exposure, Face search, IR-cut filter, Motion Detection, Motion Search, People Detection, People search, Person of Interest detection, Progressive scanning, Selective face blurring, Trajectory analysis, True Wide Dynamic Range (TWDR), Vehicle Detection, Vehicle search
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, SDXC Memory Card
Flash Memory Installed: 3 TB
Technical Information
Infrared Distance: 66 ft
Infrared LEDs: Yes
Motion Detection: Yes
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - IR - infrared LEDs on, 0.009 lux - color - F1.9
Total Pixels: 12,500,000 pixels
Image Sensor Size: 1/6"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/2.0
Min Focal Length: 1.7 millimetre
Sensor Size (metric): 4.2 mm (1/6")
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/120 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3520 x 2640
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Impact protection
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3 inch
Width: 6.1 inch
Depth: 6.1 inch
Weight: 3.02 lbs
Included Items
Included Accessories: Cable sealing rubber for 6.5-7.5mm, Conduit adapter, Mount plate with leveler, Screw pack, Torx T10 screw driver
Bundled With: 120 days onboard storage
