Product Information

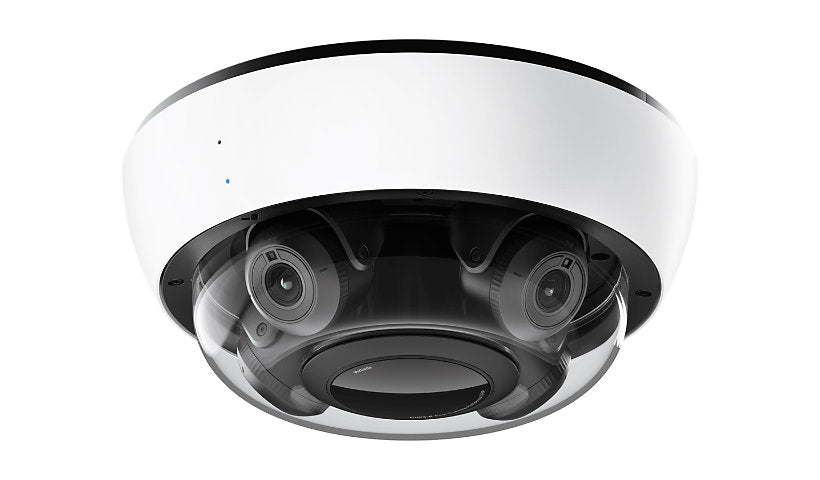

The Verkada CH53-E is a 360 degree multisensor dome with four individually adjustable 5 MP heads, each 2592 x 1944 at 24 fps, and 3.18 to 8.12 mm motorized lenses. It has True WDR, IR up to 98 ft, a mic, people and vehicle analytics and 2 TB onboard for up to 60 days at SQ, and runs on Gigabit PoE++. Rated -40 to 50 C.
Key Features
- Four 5 MP adjustable heads
- 360 degree coverage
- 3.18 to 8.12 mm motorized
- 2 TB, up to 60 days SQ
- IR up to 98 ft, True WDR
- Gigabit PoE++
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CH53-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: -90° / +90° rotation, 2 x Ambarella CV72S66 CPU, 360° field of view, Aluminum housing, Individually adjustable sensor heads, IR-cut filter, LED Indicator, People analytics, True Wide Dynamic Range (TWDR), Vehicle analytics
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 2 TB
Technical Information
Angular Field of View (D, Max, Degree): 145
Angular Field of View (H, Max, Degree): 105
Angular Field of View (V, Max, Degree): 76
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 47
Max Focal Length: 8.12 millimetre
Optical Zoom: 2.55
Tilt: -180 to +180
Motion Detection: Yes
Panning Range (degree): -25 to +90
Angular Field of View (H, Min, Degree): 39
Angular Field of View (V, Min, Degree): 29
Minimum Illumination: 0 lux - IR - infrared LEDs on, 0.009 lux - color - F1.9
Total Pixels: 4 x 5,000,000 pixels
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.9-3.24
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 2592 x 1944
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Weather resistant / impact resistant
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.5 inch
Width: 10.3 inch
Depth: 10.3 inch
Weight: 7.55 lbs
Included Items
Included Accessories: 2 desiccants, 4 screws, 4 wall anchors, Conduit adapter, Large cable gland, Mount plate, T10 security torx screwdriver
Bundled With: 60 days maximum SQ onboard retention
