Product Information

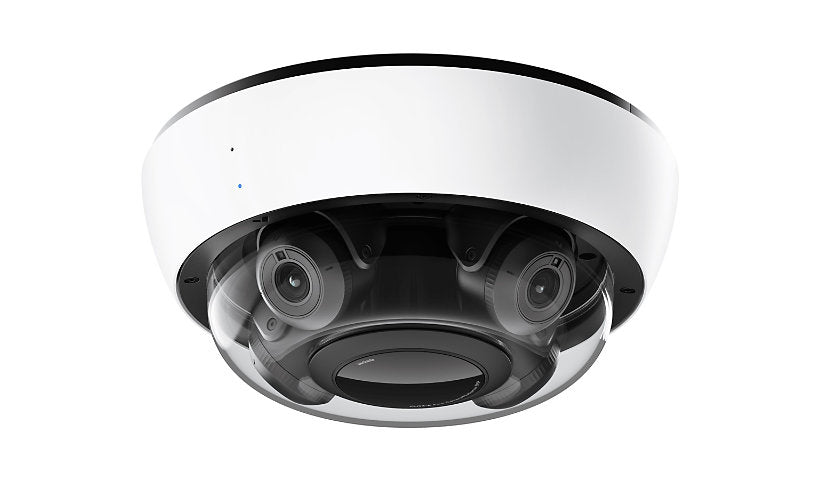

This Verkada CH53-E carries 8 TB onboard for 365 days. The multisensor dome uses four 5 MP sensors (2592 x 1944 each, 24 fps) with 3.18 to 8.12 mm motorized lenses, plus 120 dB dynamic range, IR up to 98 ft, a mic, AI alerts and attribute search, on PoE+ Class 3. Weather and impact resistant, mounting hardware included.
Key Features
- Four 5 MP sensors
- 8 TB, 365 days storage
- 3.18 to 8.12 mm motorized
- IR up to 98 ft, mic
- 120 dB dynamic range
- PoE+ Class 3
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Multisensor Series
Model: CH53-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: -90° / +90° rotation, 120 dB dynamic range, 2 x Ambarella CV72S66 CPU, 30 days of storage, 8 video streams, AI-powered alerts, AI-powered search, Aluminum/plastic housing, Attribute search, Audit log, Cloud backup, Configurable retention days, Crowd detection, Dual exposure, Face search, Infrared cut filter, LED Indicator, Lens Distortion Compensation (LDC), Line-crossing detection, Live face blur, Live Link, Loitering detection, Low bandwidth mode, Occupancy Trends, People Detection, People search, Person of Interest detection, PoE+ support, Privacy regions, Selectable storage location, Timelapse Recording, Trajectory analysis, True Wide Dynamic Range (TWDR), Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 8 TB
Technical Information
Angular Field of View (D, Max, Degree): 145
Angular Field of View (H, Max, Degree): 105
Angular Field of View (V, Max, Degree): 76
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 44
Max Focal Length: 8.12 millimetre
Optical Zoom: 2.55
Tilt: -25 to +90
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 38
Angular Field of View (V, Min, Degree): 28
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 4 x 5,000,000 pixels
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.9-3.24
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 2592 x 1944
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Weather resistant / impact resistant
Form Factor: Dome
Camera Mechanical Design: Multi-sensor
Dimensions and Weight
Height: 4.5 inch
Width: 10.3 inch
Depth: 10.3 inch
Weight: 7.55 lbs
Included Items
Included Accessories: 2 desiccants, 4 wall anchors, 4 wall screws, Cable gland, Conduit adapter, Mount plate, T10 security torx screwdriver
Bundled With: 365 days onboard storage (8TB)
