Product Information

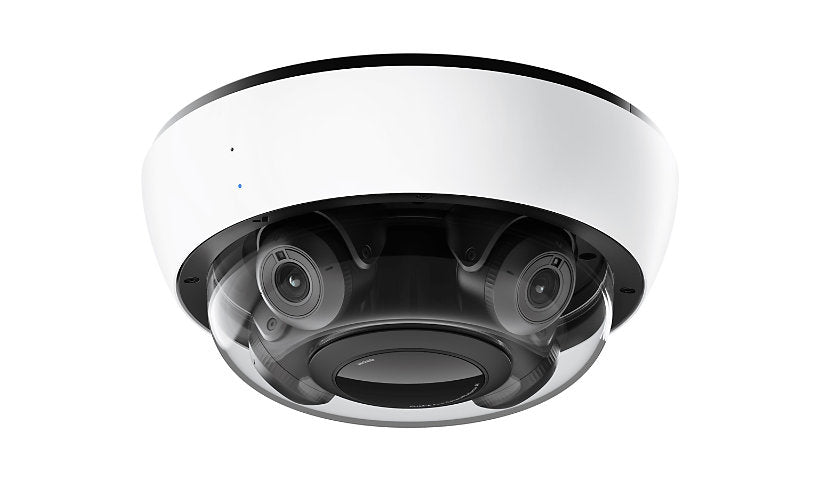

The Verkada CH63-E is a multisensor dome with four 4 MP sensors and 3.18 to 8.12 mm motorized lenses, recording up to 3856 x 2228 at 24 fps. It has IR up to 98 ft, a mic, true WDR and people and vehicle analytics, and runs on PoE++ or 37 to 57 V DC. Weather and impact resistant. Storage is listed as 90 days (2TB) but the part number shows 6TB, please confirm.
Key Features
- Four 4 MP sensors
- 3.18 to 8.12 mm motorized
- IR up to 98 ft, mic
- People, vehicle analytics
- True WDR
- PoE++, weather resistant
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada
Model: CH63-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: -90° / +90° rotation, 2 x Ambarella CV72S66 CPU, Aluminum housing, Dual exposure, IR-cut filter, LED Indicator, People analytics, True Wide Dynamic Range (TWDR), Vehicle analytics, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Technical Information
Angular Field of View (D, Max, Degree): 140
Angular Field of View (H, Max, Degree): 112
Angular Field of View (V, Max, Degree): 56
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 47
Max Focal Length: 8.12 millimetre
Camera Type: Network surveillance camera
Tilt: 25 to 90
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 42
Angular Field of View (V, Min, Degree): 23
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 4 x 4,000,000 pixels
Video Modes: 4K
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.9-3.24
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Night Vision: Yes
Digital Video Capture Resolution: 3856 x 2228
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3856 x 2228
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Weather resistant / impact resistant
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.5 inch
Width: 10.3 inch
Depth: 10.3 inch
Weight: 9.76 lbs
Included Items
Included Accessories: 2 desiccants, 4 wall anchors, 4 wall screws, Cable gland, Conduit adapter, T10 security torx screwdriver
Bundled With: 90 days onboard storage (2TB)
