Product Information

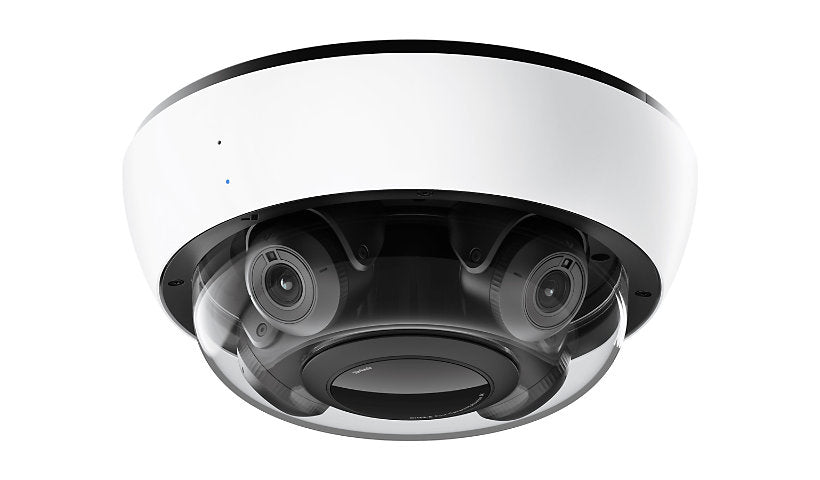

The Verkada CH63-E multisensor dome has four 1/2.8 inch sensors (listed as 4 x 4 MP) recording up to 3856 x 2228 at 24 fps through 3.18 to 8.12 mm motorized lenses, with True WDR, IR up to 98 ft and people and vehicle analytics. It has 4 TB onboard for 60 days and runs on PoE++ or 37 to 57 V DC. Weather and impact resistant.
Key Features
- Four sensor dome
- Up to 3856 x 2228 at 24 fps
- 4 TB, 60 days storage
- IR up to 98 ft, True WDR
- People and vehicle analytics
- PoE++
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Multisensor Series
Model: CH63-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: -90° / +90° rotation, 2 x Ambarella CV72S66 CPU, Aluminum housing, Dual exposure, IR-cut filter, LED Indicator, People analytics, True Wide Dynamic Range (TWDR), Vehicle analytics, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 4 TB
Technical Information
Angular Field of View (D, Max, Degree): 140
Angular Field of View (H, Max, Degree): 112
Angular Field of View (V, Max, Degree): 56
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 47
Max Focal Length: 8.12 millimetre
Tilt: 25 to 90
Motion Detection: Yes
Panning Range (degree): -180 to +180
Angular Field of View (H, Min, Degree): 42
Angular Field of View (V, Min, Degree): 23
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 4 x 4,000,000 pixels
Video Modes: 4K
Image Sensor Size: 4 x 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.9-3.24
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 4 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 3856 x 2228
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3856 x 2228
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Weather resistant / impact resistant
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 4.5 inch
Width: 10.3 inch
Depth: 10.3 inch
Weight: 9.76 lbs
Included Items
Included Accessories: 2 desiccants, 4 wall anchors, 4 wall screws, Cable gland, Conduit adapter, T10 security torx screwdriver
Bundled With: 60 days onboard storage (4TB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
