Product Information

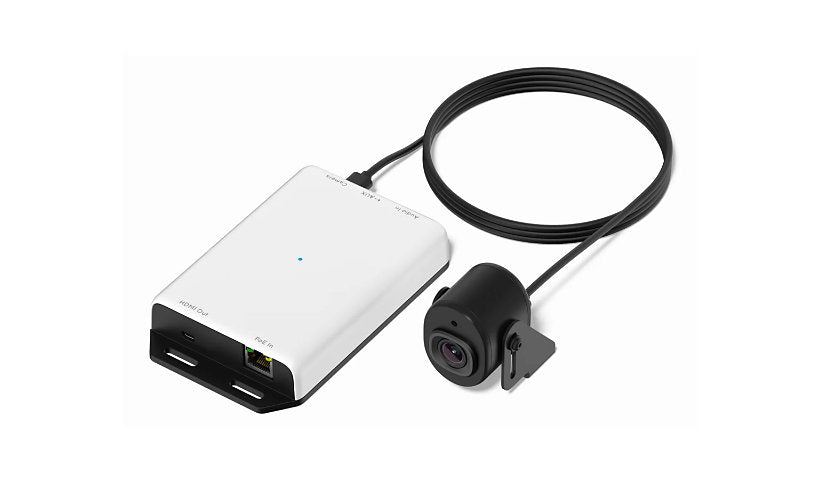

The Verkada CM42-S is a 5 MP split design indoor mini camera recording 2592 x 1944 at 24 fps through a 3.2 mm lens with a 99 degree horizontal view and 104 dB dynamic range. It has IR up to 49 ft, audio in, AUX, micro HDMI and a 6.6 ft USB-C sensor cable, with 768 GB for 90 days. The text says 256 GB, please confirm.
Key Features
- 5 MP, split design
- 3.2 mm, 99 degree view
- 768 GB, 90 days storage
- IR up to 49 ft
- Audio in, AUX, micro HDMI
- Gigabit, indoor
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Mini Series
Model: CM42-S
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: 104 dB dynamic range, 107° field of view (diagonal), 71° field of view (vertical), 99° field of view (horizontal), Adaptive quality recording, AI-powered alerts, AI-powered search, Ambarella CV25S88 CPU, Attribute search, Crowd detection, Dual exposure, Face search, IR-cut filter, Line-crossing detection, Loitering detection, Motion Detection, Motion Search, Occupancy Trends, People Detection, People search, Person of Interest detection, Selective face blurring, Trajectory analysis, Vehicle Detection, Vehicle search, Wide Dynamic Range (WDR)
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: +/- AUX, Audio line in - 3.5 mm jack, LAN/power - RJ-45, Micro-HDMI, Sensor input - 24-pin USB-C
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Flash Memory Installed: 768 GB
Technical Information
Infrared Distance: 49 ft
Infrared LEDs: Yes
Motion Detection: Yes
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - IR - F1.9 - infrared LEDs on, 0.009 lux - color - F1.9
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 2592 x 1944
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: One-way audio capability
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Turret
Camera Mechanical Design: Split
Dimensions and Weight
Height: 2.3 inch
Width: 1.8 inch
Depth: 2.4 inch
Weight: 3.89 ounce
Included Items
Included Accessories: 4 wall anchors, 4 wall screws, Screw (1/4"-20), T10 security torx screwdriver
Cables: 1 x USB-C cable - 6.6 ft
Bundled With: 90 days of storage
