Product Information

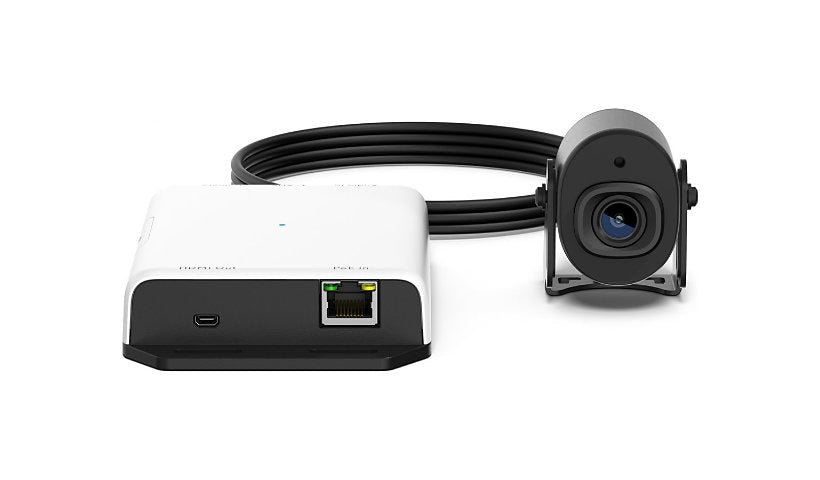

The Verkada Mini Series CM42-S is a 5 MP split design indoor mini camera recording 2592 x 1944 at 24 fps through a 3.2 mm F1.6 lens. It has True WDR, IR up to 49 ft, audio, people analytics, face search and occupancy trends, with 256 GB onboard for 30 days, on Gigabit PoE.
Key Features
- 5 MP, 2592 x 1944
- Split mini design
- Fixed 3.2 mm lens
- 256 GB, 30 days storage
- Face search, people analytics
- Gigabit PoE, indoor
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Mini Series
Model: CM42-S
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Ambarella CV25S88 CPU, Attribute search, Dual exposure, Face search, Infrared-cut filter, LED Indicator, Occupancy Trends, People analytics, People Detection, People search, True Wide Dynamic Range (TWDR), Vehicle analytics, Vehicle search
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, SDXC Memory Card
Flash Memory Installed: 256 GB
Technical Information
Angular Field of View (D, Max, Degree): 107
Angular Field of View (H, Max, Degree): 99
Angular Field of View (V, Max, Degree): 71
Infrared Distance: 49 ft
Angular Field of View (D, Min, Degree): 92
Max Focal Length: 3.2 millimetre
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 80
Angular Field of View (V, Min, Degree): 63
Camera Iris: Fixed iris
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 2592 x 1944
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: One-way audio capability
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Turret
Camera Mechanical Design: Split
Dimensions and Weight
Height: 1.9 inch
Width: 1.4 inch
Depth: 1.6 inch
Weight: 8.56 ounce
Included Items
Included Accessories: 4 screws, 4 wall anchors, Double sided tape, Torx T10 screw driver
Bundled With: 30 days onboard storage (256GB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
