Product Information

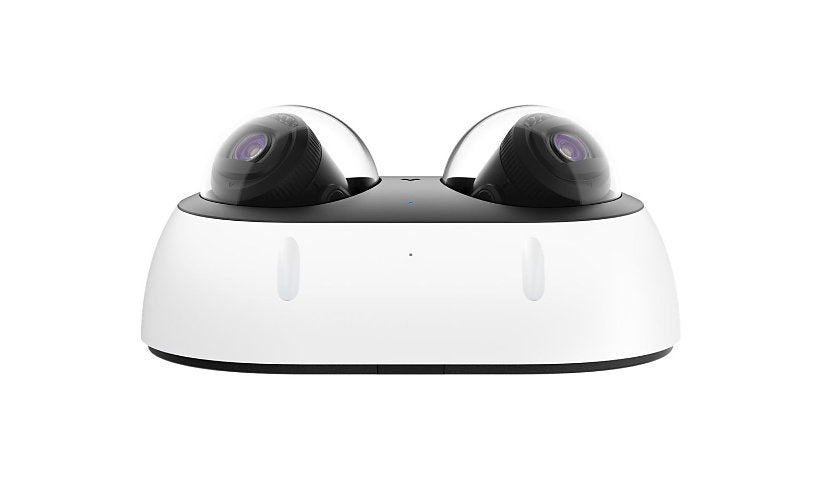

The Verkada CY63-E is a multisensor dome with two 8.6 MP sensors, each 3856 x 2228 at 24 fps, and 3.18 to 8.12 mm motorized lenses. It has 1 TB onboard for 30 days, IR up to 98 ft, a mic, AI search, face search and line crossing alerts, and runs on Gigabit PoE+. Weather and impact resistant for -40 to 50 C.
Key Features
- Two 8.6 MP sensors
- 3.18 to 8.12 mm motorized
- 1 TB, 30 days storage
- IR up to 98 ft
- AI and face search
- Gigabit PoE+, -40 to 50 C
Product Information
Brand: Verkada
Manufacturer: Verkada Hardware
Product Line: Verkada Multisensor Series
Model: CY63-E
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: -90° / +90° rotation, 4 video streams, AI-powered alerts, AI-powered search, Aluminum housing, Ambarella CV72S66 CPU, Attribute search, Audit log, Cloud backup, Configurable retention days, Crowd detection, Dual exposure, Face search, Infrared cut filter, LED Indicator, Line-crossing detection, Live face blur, Live Link, Loitering detection, Low bandwidth mode, People Detection, People search, Person of Interest detection, Privacy regions, Selectable storage location, Selective face blurring, Timelapse Recording, Trajectory analysis, True Wide Dynamic Range (TWDR), Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: RTSP
Ports: LAN/power - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card, microSDXC Card
Technical Information
Angular Field of View (D, Max, Degree): 142
Angular Field of View (H, Max, Degree): 115
Angular Field of View (V, Max, Degree): 61
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 48
Max Focal Length: 8.12 millimetre
Optical Zoom: 2.55
Tilt: 0 to 60
Motion Detection: Yes
Panning Range (degree): -90 to +90
Angular Field of View (H, Min, Degree): 44
Angular Field of View (V, Min, Degree): 25
Minimum Illumination: 0 lux - IR, 0.009 lux - color - F1.9
Total Pixels: 2 x 8,600,000 pixels
Image Sensor Size: 2 x 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.9-3.24
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 2 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 3856 x 2228
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/10000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone, One-way audio capability
Touchscreen: No
Max Video Resolution: 3856 x 2228
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Protection: Weather resistant / impact resistant
Form Factor: Dome
Camera Mechanical Design: Multi-sensor
Dimensions and Weight
Height: 4.5 inch
Width: 10 inch
Depth: 5.6 inch
Weight: 4.41 lbs
Included Items
Included Accessories: 4 wall anchors, 4 wall screws, Cable gland, Conduit adapter, Desiccant, Mount plate with leveler, T10 security torx screwdriver
Bundled With: 30 days onboard storage (1TB)
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
