Product Information

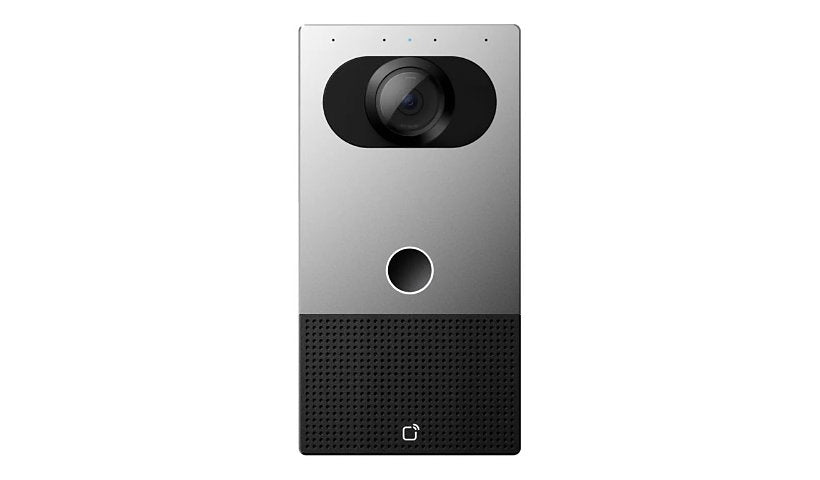

The Verkada TD53 is an outdoor video intercom with a 5 MP camera, card reader, four microphones and a 4 W speaker, rated IP65. It reads MIFARE and DESFire EV3 plus NFC and Bluetooth, has 15 m detection range and up to 512 GB storage, and is PoE+ powered with two relays, three alarm inputs and RS-485.
Key Features
- 5 MP camera, 160 degree diagonal view
- MIFARE, DESFire EV3, NFC, Bluetooth
- 4 microphones, 4 W speaker
- PoE+, Gigabit Ethernet
- 2 x relay, 3 x alarm input, RS-485
- IP65, outdoor, mounting hardware
Product Information
Brand: Verkada
Product Line: Verkada
Model: TD53
Product Type: IP intercom station
Packaged Quantity: 1
Color Category: Black, Silver
Network and Communication
Features #2: 100° field of view (vertical), 130° field of view (horizontal), 15 meters detection range, 160° field of view (diagonal), Fixed iris, LED Indicator, Max SPL 90 dB, Two-way communication, Up to 512 GB storage capacity, Wide Dynamic Range (WDR)
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Wired Protocol: 10/100/1000 Ethernet
Features: Bluetooth (BLE) clients support, Echo cancellation, NFC support, Noise suppression, Tamper detection
Features: 100° field of view (vertical), 130° field of view (horizontal), 15 meters detection range, 160° field of view (diagonal), Fixed iris, LED Indicator, Max SPL 90 dB, Two-way communication, Up to 512 GB storage capacity, Wide Dynamic Range (WDR)
Connectivity
Interfaces: 2 x relay, 3 x alarm input, Serial (RS-485)
Power Over Ethernet (PoE): PoE+
Power
Power Source: PoE
Technical Information
Environment: Outdoor
Card Technology: HID MIFARE, HID MIFARE DESFire EV3, MIFARE DESFire
Functions: Access control
Buttons Quantity: 1
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.1
Min Focal Length: 2.12 millimetre
Sensor Resolution: 5 megapixel
Sensor Size (metric): 9.1 mm (1/2.8")
Night Vision: Yes
Audio Support: Yes
Touchscreen: No
Integrated Components: 4 microphones, Camera, Card reader, Speaker (4W)
Max Video Resolution: 2688 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Materials: Aluminum, Polycarbonate, Steel
Dimensions and Weight
Height: 9 inch
Width: 4.6 inch
Depth: 1.3 inch
Weight: 2.2 lbs
Included Items
Included Accessories: Grommet punch, Mounting kit, Mounting plate, Surface mount, T10 security torx key
