Product Information

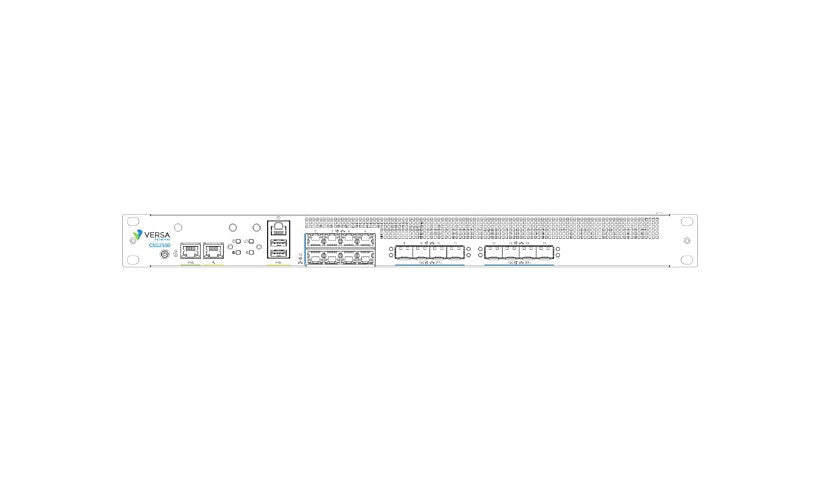

The Versa CSG2500 is a rack mount secure SD-WAN and firewall gateway rated at 50 Gbps stateful firewall and routing, 20 Gbps NGFW with SD-WAN, 6 Gbps NGFW with IPS and SD-WAN, 35 Gbps SD-WAN internet breakout and 25 Gbps SD-WAN site to site. It has eight Gigabit RJ-45 and eight 1/10G SFP+ WAN/LAN ports, management, IPMI and RS-232 ports, two USB 3.0 ports, 96 GB of RAM, a 1 TB SSD and dual redundant power supplies.
Key Features
- 50 Gbps stateful firewall
- 20 Gbps NGFW + SD-WAN
- 8 x 1G RJ-45 + 8 x 10G SFP+
- 96 GB RAM, 1 TB SSD
- IPMI management
- Dual redundant PSU
Product Information
Brand: Versa
Manufacturer: Versa Networks
Product Line: Versa
Model: CSG2500
Product Type: Gateway
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Device: Maximum throughput NGFW + AV + SD-WAN: 10 Gbps, Maximum throughput NGFW + IPS + SD-WAN: 6 Gbps, Maximum throughput NGFW + SD-WAN: 20 Gbps, Maximum throughput NGFW + UTM + SD-WAN: 5 Gbps, Routing throughput: 50 Gbps, SD-WAN DIA throughput: 35 Gbps, SD-WAN site-to-site throughput: 25 Gbps, Stateful inspection firewall throughput: 50 Gbps
Operating System Edition: VOS
Features: 2+1 fans, 802.1x authentication, Anti-virus protection, Built-in hardware crypto accelerator, Carrier Grade NAT (CGN/CGNAT), Firewall protection, Intrusion Prevention System (IPS), Redundant fans, Routing, SD-WAN support, Trusted Platform Module (TPM)
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x IPMI - RJ-45, 1 x management (RS-232) - RJ-45, 2 x USB 3.0 - Type A, 8 x 1000Base-T - RJ-45 (WAN / LAN), 8 x 1Gb Ethernet/10Gb Ethernet - SFP+ (WAN / LAN)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Provided: 640 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 96 GB
Memory Technology: DDR4 SDRAM
Hard Drive Capacity: 1 TB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 85%
MTBF: 166,753 Hours
Physical Characteristics
Form Factor: Rack-mountable
Airflow Direction: Front to back airflow
Status Indicators: Cloud, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 21.7 inch
Weight: 33.07 lbs
Certifications and Listing
Compliant Standards #2: CB, FCC, RoHS, UL
Compliant Standards: IEEE 802.1x
Compliant Standards: CB, FCC, RoHS, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
