Product Information

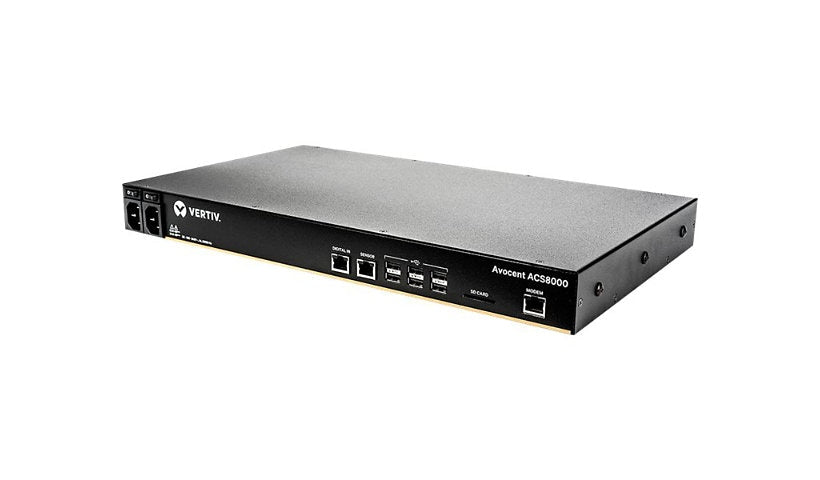

The Vertiv Avocent ACS8032MDAC-400 is a 32 port ACS 8000 advanced console server for secure management of IT assets from anywhere, both in band and out of band. It has thirty-two RS-232 RJ-45 ports, two gigabit RJ-45 and two SFP ports, eight USB 2.0, an RJ-45 console, sensor ports and a built-in V.92 analog modem. A Cortex-A9 with 1 GB DDR3L and 16 GB flash (SD card supported) runs Linux with IPsec, NAT, packet filtering, IPv6, SNMP traps, syslog and e-mail alerts. Login options include AD, LDAP, Kerberos, RADIUS, TACACS+, SecurID, DSView and X.509. Dual redundant AC supplies draw about 28 W in 1U.
Key Features
- 32 RS-232 RJ-45 ports
- Built-in V.92 modem
- 2 x GbE plus 2 x SFP
- Dual redundant AC PSU
- IPsec, AD, TACACS+
- 1U rack console server
Product Information
Brand: Avocent
Manufacturer: Avocent (Apex/Cybex)
Product Line: Avocent ACS Advanced Console S
Model: ACS8032MDAC-400
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Protocols & Specifications: ITU V.92
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, NFS
Remote Management: CLI, HTTP, HTTPS, SNMP, SSH, Telnet, TFTP
Authentication Method: Active Directory, CHAP, DSView, Extensible Authentication Prot, Kerberos, LDAP, PAP, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), SecurID, TACACS+, X.509 certificates
Operating System Edition: Linux
Features: E-mail notification, IPv6 support, NAT support, Packet filtering, SNMP trap, Syslog support, Temperature sensor
Connectivity
Ports: 32
Interface Provided: 1 x console - RJ-45, 1 x sensor - RJ-45, 2 x - SFP (mini-GBIC), 2 x 1000Base-T - RJ-45, 32 x RS-232 - RJ-45, 4 x sensor, 8 x USB 2.0 - Type A
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 28 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A9 MPCore
Processors Installed: 1
RAM Installed: 1 GB
Memory Technology: DDR3L SDRAM
Flash Memory Installed: 16 GB
Total Processor Supported: 1
Flash Memory Cards Supported: SD Memory Card
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 20 - 80% (non-condensing)
Physical Characteristics
Form Factor: External
Height (Rack Units): 1
Built-in Devices: Modem
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 9.5 inch
Weight: 7.5 lbs
