Product Information

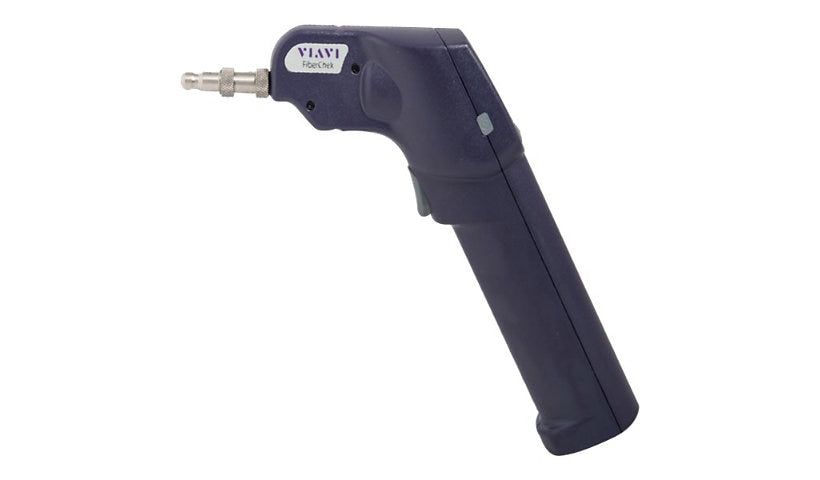

The Viavi FiberChek FIT-FC-KIT3 is a handheld digital fiber inspection probe that automates the inspection workflow for technicians at any skill level. It has a 2560 x 1920 CMOS sensor with auto-center and auto-focus, built-in image viewing on an OLED touchscreen, automatic pass/fail grading and saved results you can recall, and an optical power meter function. It connects by Wi-Fi or USB to iOS, Android and Windows devices and runs up to 6 hours on a lithium ion battery. The kit includes LC, SC and SC APC bulkhead tips, U12M, U25M and U25MA tips, a probe case and a tip case.
Key Features
- Fiber inspection probe
- Auto focus and center
- Pass/fail analysis
- Wi-Fi and USB link
- 6 inspection tips
- Up to 6 hour battery
Product Information
Tests, Tools and Measurements: Optical power meter
Media: Fiber
Brand: Viavi
Manufacturer: Network Instruments
Product Line: Viavi FiberChek
Model: FIT-FC-KIT3
Product Type: Digital probe microscope
Packaged Quantity: 1
Network and Communication
Features #2: Touchscreen
Features: Android compatible, Auto-center, Auto-focus, CMOS camera sensor (2560 x 1920, 1/2.5"), iOS compatible, USB connectivity, USB powered, Wi-Fi connectivity, Windows compatible
Features: Touchscreen
Power
Battery Chemistry: Lithium ion
Battery Run Time (Up To): 6 hour(s)
Technical Information
Signal Source: LED
Display Resolution: 128 x 128 pixels
Display Screen: OLED
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Dimensions and Weight
Height: 8.6 inch
Width: 2 inch
Depth: 5.2 inch
Weight: 9.59 ounce
Included Items
Included Accessories: FBPT-LC inspection tips for LC bulkheads, FBPT-SC inspection tips for SC bulkheads, FBPT-SC-APC inspection tips for SC bulkheads, FBPT-U12M tip, FBPT-U25M tip, FBPT-U25MA tip, Probe case, Tip case
Certifications and Listing
Compliant Standards: EN/IEC 61326, IEC 61300-3-35
