Product Information

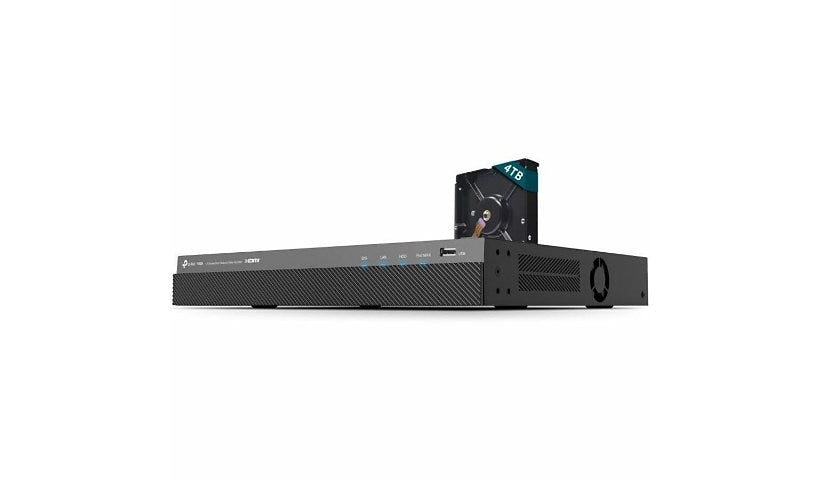

The VIGI NVR2016H-16MP-4TB is a 16 channel network video recorder with 16 PoE+ ports (140 W budget) and a 4 TB hard drive preinstalled. It has 4K HDMI output, H.265+, 80 Mbps incoming bandwidth, 2 SATA bays (up to 16 TB each), eSATA, 2 USB 2.0 ports, audio in and out, smart detection and remote viewing by app, web or VMS. This is an NVR, not a camera.
Key Features
- 16 channel NVR
- 16 PoE+ ports, 140 W
- 4 TB HDD preinstalled
- 4K HDMI output
- H.265+, 80 Mbps in
- App, web, VMS access
Product Information
Brand: VIGI
Manufacturer: TP-LINK Technologies Co., Ltd
Model: NVR2016H-16MP-4TB
Product Type: Video Surveillance Station
Network and Communication
Connectivity Technology: Wired
Remote Management: Yes
Features: Motion Detection
Connectivity
Audio In Ports: 1
Audio Out Ports: 1
Ethernet: Yes
USB Ports: 2
HDMI: Yes
USB: Yes
USB Standard: USB 2.0
Power
Power Source: DC Supply
Power Consumption: 40 watt
Memory and Processor
Hard Drive Capacity: 4 TB
Technical Information
HD Recording: Yes
Recording Formats: 4K
Max Frame Rate: 30 fps
Video Formats: H.264, H.264+, H.265, H.265+
Min Operating Temperature: 14
Max Operating Temperature: 131
Dimensions and Weight
Height: 1.8 inch
Width: 13 inch
Depth: 11.2 inch
Included Items
System Components: Network Video Recorder
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
