Product Information

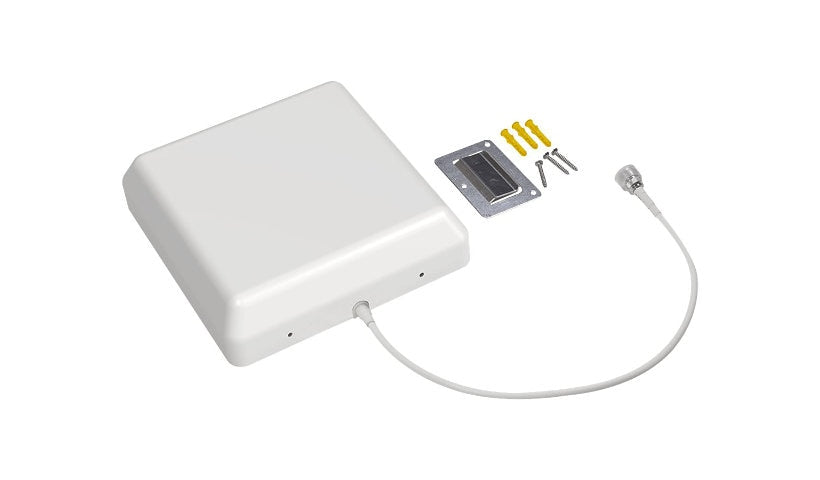

The weBoost 311234 is an indoor wall mount panel antenna for 50 ohm cell boosters, covering 617 to 2700 MHz including Band 71 5G and LTE, CDMA, GSM and UMTS, with 5.5 to 8 dBi gain. It has an N female connector. The spec lists the weBoost Office 200 while the description names the WilsonPro 710i, so please confirm your booster.
Key Features
- Indoor wall mount panel
- 617 to 2700 MHz
- Band 71 5G, LTE
- 5.5 to 8 dBi gain
- N female, 50 ohm
- 20 W max
Product Information
Brand: weBoost
Manufacturer: Wilson Electronics
Product Line: weBoost
Compatibility Specs: weBoost Office 200
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 5.5 dBi (for 617 - 698 MHz), 6 dbi (for 698 - 806 MHz), 7 dBi (for 806 - 960 MHz), 7.2 dBi (for 1710 - 1880 MHz), 7.7 dBi (for 1850 - 1990 MHz), 7.7 dBi (for 2300 - 2700 MHz), 8 dbi (for 1910 - 2170 MHz)
Antenna Placement: Indoor, Wall-mountable
Antenna Compatibility: 5G, AWS, CDMA, GSM, LTE, UMTS
Frequency Range: 1.71 - 1.88 GHz, 1.91 - 2.17 GHz, 1710 - 2700 MHz, 1850 - 1990 MHz, 2.3 - 2.7 GHz, 617 - 698 MHz, 617 - 960 MHz, 698 - 806 MHz, 806 - 960 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Connectivity
Connectors: 1 x antenna - N connector (female)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Plate
Antenna Features: Vertical polarization
Max Power: 20 watt
Dimensions and Weight
Height: 6.2 inch
Width: 6.6 inch
Depth: 1.8 inch
Weight: 21.13 ounce
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
