Product Information

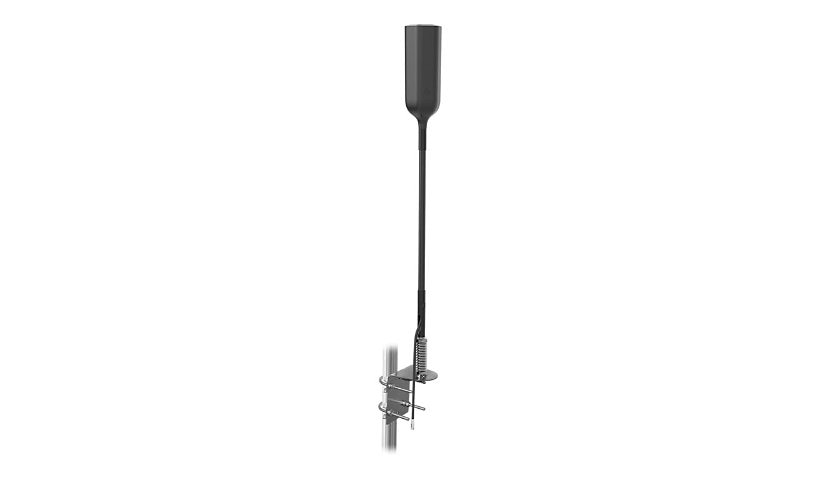

The weBoost Drive RV antenna is an outdoor omni antenna made for RV use with weBoost vehicle boosters, extending from about 7.5 in to 20.5 in with the included 13 in mast extension. It covers 698 to 2700 MHz with up to about 4.3 dBi, is IP66 rated and comes with a 25 ft cable, ladder mount bracket and side exit adapter.
Key Features
- Outdoor omni for RVs
- 698 to 2700 MHz
- Up to about 4.3 dBi
- IP66, SMA male
- 25 ft cable included
- Ladder mount, mast extension
Product Information
Brand: weBoost
Manufacturer: Wilson Electronics
Product Line: weBoost
Model: Drive RV
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 2.4 dBi (for 698 - 806 MHz), 2.6 dBi (for 806 - 960 MHz), 3.7 dBi (for 1.91 - 2.17 GHz), 3.8 dBi (for 1.71 - 1.88 GHz), 3.8 dBi (for 1.85 - 1.99 GHz), 4.3 dBi (for 2.3 - 2.7 GHz)
Antenna Placement: Car, Mast, Outdoor
Frequency Range: 1.7 GHz, 1.71 - 1.88 GHz, 1.85 - 1.99 GHz, 1.9 GHz, 1.91 - 2.17 GHz, 2.2 GHz, 2.3 - 2.7 GHz, 698 - 806 MHz, 700 MHz, 800 MHz, 806 - 960 MHz
Signaling Type: Cellular, Signal booster
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Connectors: 1 x antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Form Type: Radome, Rod
Antenna Features: IP66, Vertical polarization, VSWR < 2:1
Max Power: 10 watt
Physical Characteristics
Mounting Kit: Included
Materials: Acrylonitrile styrene acrylate (ASA), Aluminum, Aluminum / plastic
Dimensions and Weight
Height: 7.4 inch
Width: 2.7 inch
Depth: 2.7 inch
Weight: 3.64 lbs
Included Items
Accessories Included: antenna ladder mount bracket, coaxial cable side-exit adapter, mast extension
Cables: 1 x antenna cable - 25 ft
Warranty
Limited Warranty: 2 Year
Service & Support Details: Limited warranty - 2 years
Service Activation: No
