Product Information

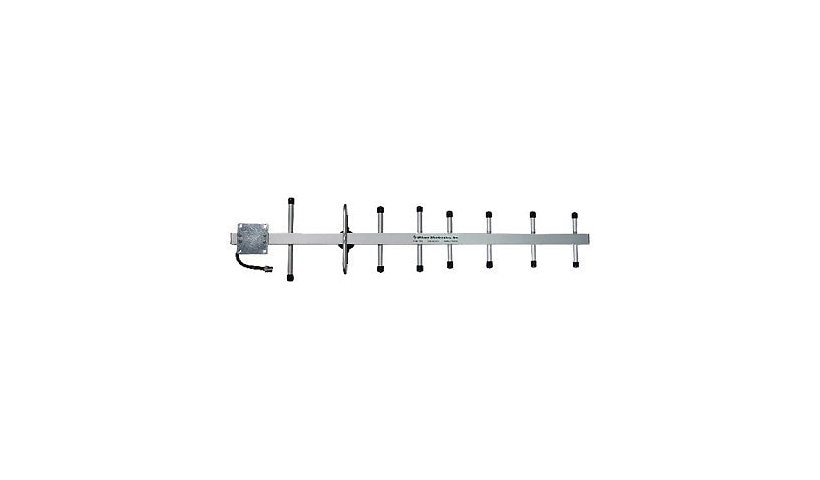

The Wilson 301111 is an outdoor directional Yagi antenna for 50 ohm weBoost and Wilson cellular boosters, pulling in 3G and 4G LTE from a distant tower. It offers 13 dBi gain, handles up to 50 W and is made of aluminum, about 3 ft long. The spec lists 806 to 915 MHz while the description says 700/800/900 MHz, so please confirm the bands.
Key Features
- Outdoor Yagi, directional
- 13 dBi gain
- For 50 ohm signal boosters
- 806 to 915 MHz per spec
- Aluminum, about 3 ft
- 50 W max
Product Information
Brand: Wilson
Manufacturer: Wilson Electronics
Product Line: Wilson
Model: Yagi Cellular Antenna
Packaged Quantity: 1
Network and Communication
Antenna Gain: 13 dBi
Antenna Placement: Outdoor
Frequency Range: 806 - 915 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Technical Information
Impedance: 50 ohm
Max Power: 50 watt
Physical Characteristics
Materials: Aluminum
Dimensions and Weight
Length: 3 ft
Weight: 1.32 lbs
Warranty
Limited Warranty: 90 Day
Service & Support Details: Limited warranty - 90 days
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
