Product Information

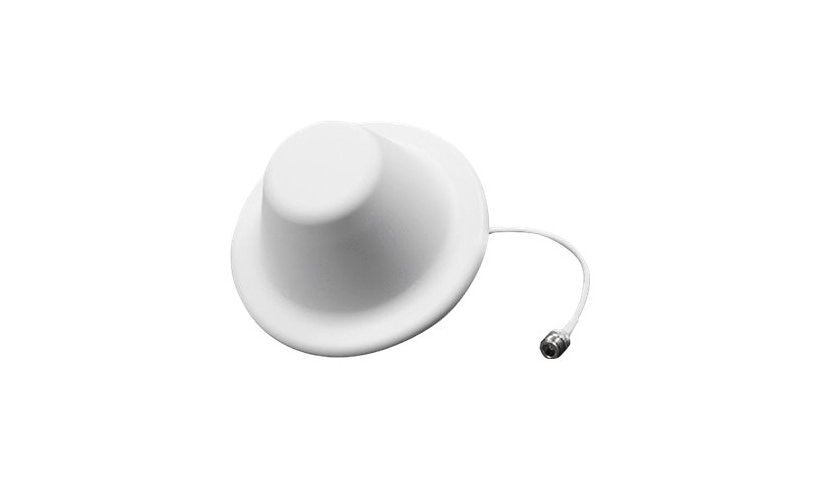

The Wilson 304412 is a white indoor ceiling dome antenna for in-building cellular coverage. It is omni-directional and vertically polarized with 4 dBi gain, covers 698 to 960 MHz and 1710 to 2700 MHz, and has a short pigtail with an N female connector. It is an antenna, not a router.
Key Features
- Indoor ceiling dome, omni-directional
- 4 dBi gain, 50 ohm
- 698 to 960 and 1710 to 2700 MHz
- N connector pigtail
- Up to 50 W
- Antenna, not a router
Product Information
Brand: Wilson
Manufacturer: Wilson Electronics
Product Line: Wilson
Model: 304412 Wide-Band Ceiling Antenna
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi
Antenna Placement: Ceiling mountable, Indoor
Antenna Compatibility: LTE
Frequency Range: 1710 - 2700 MHz, 698 - 960 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Directivity: Omni-directional
Connectivity
Integrated Graphics: 1 x antenna - N-Series connector
Technical Information
Impedance: 50 ohm
Antenna Form Type: Dome
Antenna Features: Vertically polarized
Max Power: 50 watt
Dimensions and Weight
Height: 3.3 inch
Width: 7.3 inch
Weight: 9.88 ounce
Included Items
Cables: Coax cable - 1 ft
Warranty
Service Activation: No
