Product Information

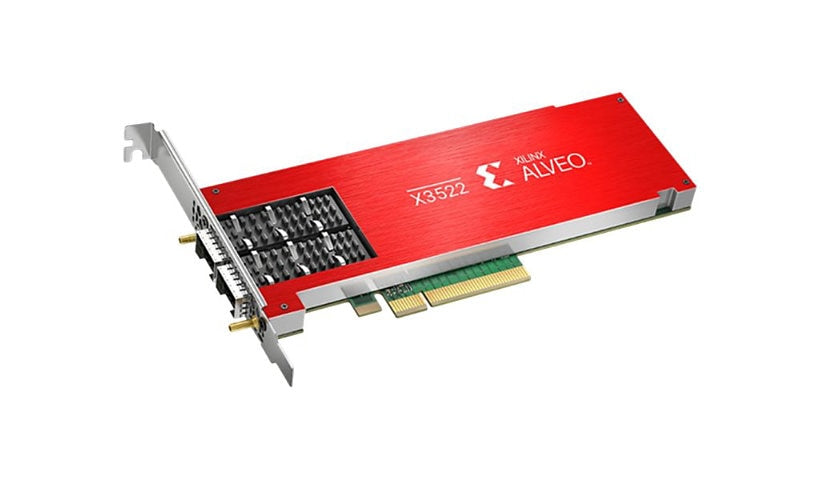

The Xilinx Alveo X3522PV is a half-height, half-length accelerator card built on the UltraScale+ architecture with 8 GB of DDR4. It connects through PCI Express 4.0 x8, offers two QSFP28 ports and uses passive cooling at 75 W. Both low-profile and full-height brackets are provided. This is an accelerator card, not a CPU.
Key Features
- UltraScale+ architecture, 16 nm process
- 8 GB DDR4 memory
- 2 x QSFP28 ports
- PCI Express 4.0 x8, single slot
- Half-height half-length, passive cooling, 75 W
- Low-profile bracket plus spare full-height bracket
Product Information
Brand: Xilinx
Manufacturer: Xilinx
Product Line: Xilinx Alveo
Model: X3522PV
Product Type: GPU computing processor
Packaged Quantity: 1
Color Category: Red
Connectivity
Output Ports (compact list): 2 x QSFP28
Interface Type: PCI Express 4.0 x8
Power
Power Consumption Operational: 75 watt
Memory and Processor
Process Technology: 16 nm
Installed Size: 8 GB
Graphics Controller Model: Xilinx Alveo X3522
Graphics Processor Manufacturer: Xilinx
Video Adapter Features: Half-height half-length (HHHL), Low profile bracket, Passive Cooling Solution, Single PCIe slot compability, Spare full height bracket, UltraScale+ architecture
Memory Technology: DDR4 SDRAM
Technical Information
Fanless: Yes
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 80%
Dimensions and Weight
Height: 4.7 inch
Width: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards: Directive 2011/65/EU, FCC, IEEE 1588-2008, RoHS, UKCA, UL
ENERGY STAR Certified: No
TCO Certified: No
