Product Information

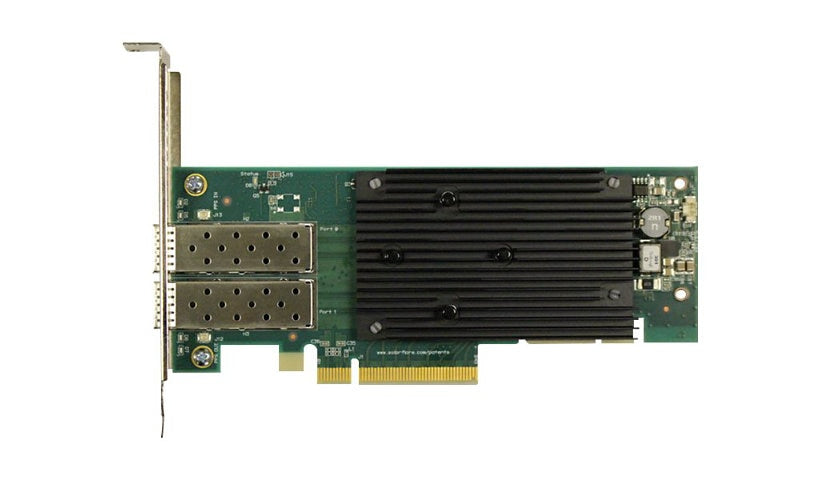

The Xilinx Solarflare XtremeScale X2522 (X2522-PLUS) is a dual port SFP28 network card on a PCIe 3.1 x8 interface, built on the Solarflare SFC9250 controller, with each port running at 10 or 25 Gb Ethernet. It targets ultra low latency, application acceleration and precise hardware timestamping, with very high message rates and NVMe over TCP readiness, and the PLUS version includes Onload. It supports RSS, TSO, LRO, VLANs, PXE and UEFI boot and jumbo frames up to 9,000 bytes.
Key Features
- 2 x 10/25GbE SFP28 ports
- Solarflare SFC9250
- PCIe 3.1 x8
- Ultra low latency
- Hardware timestamping
- Onload included (PLUS)
Product Information
Brand: Xilinx
Manufacturer: SolarFlare
Product Line: Xilinx XtremeScale
Model: X2522
Product Type: Network adapter
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
Network Standard: TCP/IP, UDP/IP
Operating System Required: Debian Linux, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi
Features: Accelerated Receive Flow Steering (RFS), Flow control, Giant Send Offload (GSO), Jumbo Frames support (up to 9000 bytes), Large Receive Offload (LRO), Large Send Offload (LSO), MAC address filtering, PXE support, Receive Segment Coalescing (RSC), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), TCP/IP checksum offload, UDP/IP checksum offload, UEFI support, VLAN support, VLAN Tagging
Connectivity
PCI Specification Revision: PCIe 3.1
Port Quantity: 2
Interface Provided: 2 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28
Network & Adapter Ports: 25 Gigabit SFP28
Host Interface: PCI Express 3.1 x8
Memory and Processor
Processor Brand: Solarflare
Processor Number: SFC9250
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 10 - 80%
Physical Characteristics
Form Factor: Plug-In Card
Dimensions and Weight
Height: 2.7 inch
Depth: 6.6 inch
Certifications and Listing
Compliant Standards #2: IEEE 1588-2008, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3bx, IEEE 802.3by
Compliant Standards: FCC, RoHS 2011/65/EU, UL
Compliant Standards: IEEE 1588-2008, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3bx, IEEE 802.3by
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
