Product Information

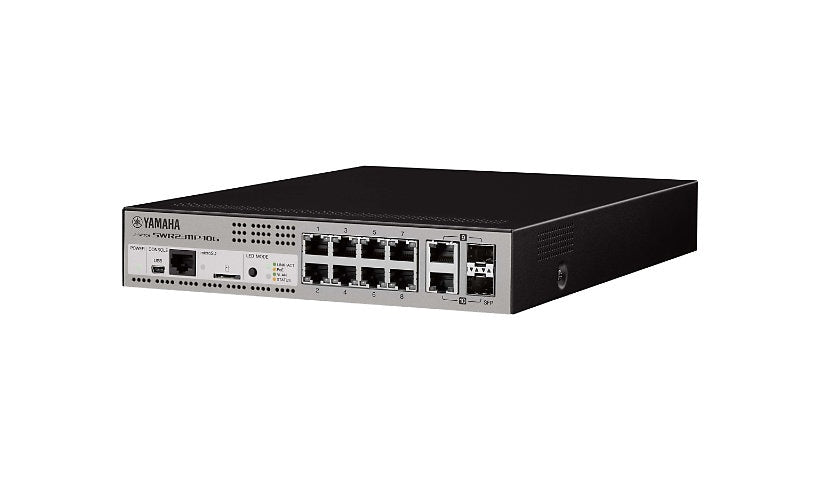

Yamaha's SWR2311P-10G is an L2 desktop switch tuned for Dante audio networks, with eight Gigabit PoE+ ports at up to 30 W and two combo Gigabit RJ-45/SFP ports. It has a 240 W PoE budget, IGMP snooping and QoS, and a microSD card slot.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 2 x combo Gigabit RJ-45/SFP ports
- 240 W PoE budget
- Optimized for Dante audio
- IGMP snooping, QoS, microSD slot
- Desktop
Product Information
Brand: Yamaha
Manufacturer: Yamaha
Product Line: Yamaha
Model: SWR2311P-10G
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: Gigabit Ethernet
Features: Auto-negotiation, Energy-Efficient Ethernet (EEE), IGMP snooping, microSD card slot, Quality of Service (QoS)
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo Gigabit Ethernet/Gigabit SFP
Interface Provided: 1 x console (mini-USB) Type B, 1 x serial (RS-232C) RJ-45, 2 x 1000Base-T RJ-45, 2 x 1000Base-X SFP+, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Expansion Slots: 1 (total) / 1 (free) x microSDHC
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 280 watt
PoE Budget: 240 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 15 - 80% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 122 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Port status, Power, SD card
Dimensions and Weight
Height: 1.7 inch
Width: 8.7 inch
Depth: 11.6 inch
Weight: 5.07 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3, IEEE 802.3at
