Product Information

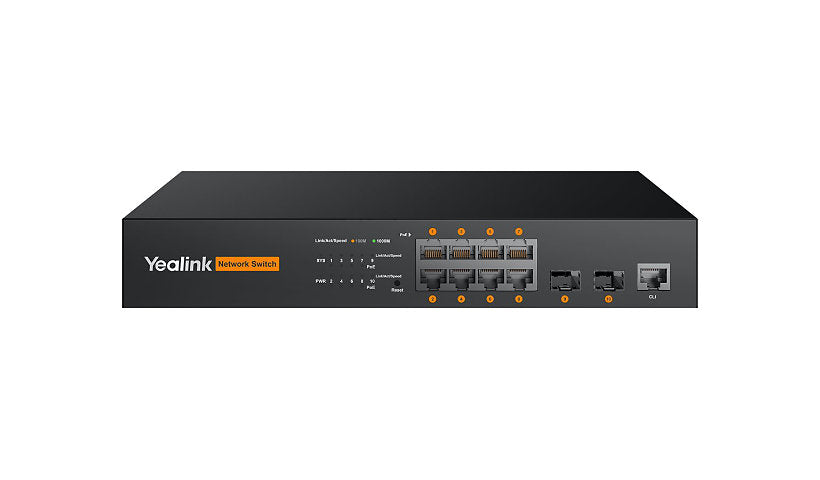

The Yealink RCH80 is a fanless L2+ managed switch with eight Gigabit PoE+ ports and two Gigabit SFP ports, built for Yealink meeting room and AV setups. It shares a 130 W PoE budget and supports AES67 audio networks, IGMP snooping and VLANs. It sits on a desk or mounts in a rack.
Key Features
- 8 x Gigabit RJ-45 PoE+ ports
- 2 x Gigabit SFP ports
- 130 W PoE budget
- L2+ managed, AES67, IGMP snooping
- Fanless
- Desktop or rack mount
Product Information
Brand: Yealink
Manufacturer: Yealink
Product Line: Yealink
Model: RCH80
Product Type: Hub
Subcategory: Peripheral sharing and hubs
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 2+
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI
Routing Protocol: IGMP, MSTP, RSTP, STP
Performance: Packet forwarding rate: 28 Mpps, Switching capacity: 20 Gbps
Capacity: VLAN entries: 4000
Features: AES67 audio network, BPDU protection, DiffServ Code Point (DSCP) support, Energy-Efficient Ethernet (EEE), Fanless, Generic VLAN Registration Protocol (GVRP), IGMP fast leave, IGMP snooping, Loop protection, Private VLAN, QinQ VLAN, Quality of Service (QoS), Reset button, Root protection, Voice VLAN, Weighted Round Robin (WRR)
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit SFP
Interface Provided: 1 x management RJ-45, 2 x 1000Base-X SFP, 8 x 10/100/1000 Base-T (PoE+) RJ-45
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 hertz
Power Consumption Operational: 10 watt
PoE Budget: 130 watt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 167 degree Fahrenheit
Humidity Range Storage: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, PoE, Power, System
Dimensions and Weight
Height: 1.7 inch
Width: 11 inch
Depth: 7.1 inch
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
