Product Information

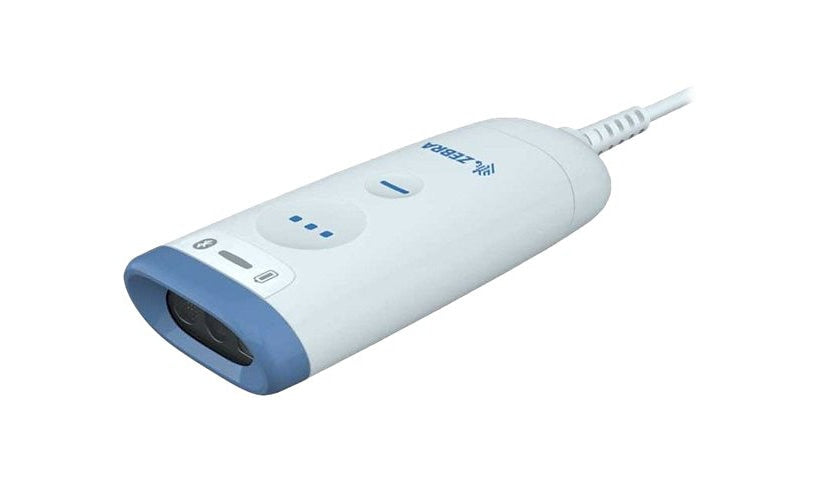

Zebra's CS6080-HCB00004P1W kit includes the CS60-HC healthcare companion scanner, a presentation cradle and a USB-C cable. The scanner switches between corded and cordless, handheld and hands-free use, with Bluetooth 5.0 and broad 1D/2D symbology support.
Key Features:
- CS60-HC scanner + presentation cradle + USB-C cable
- Corded or cordless; Bluetooth 5.0
- 1D/2D symbologies incl. Data Matrix, Aztec
- Healthcare white housing
Specifications:
- Brand: Zebra
- Manufacturer Part Number: CS6080-HCB00004P1W
- Color: Healthcare white
- Wireless Connectivity: Bluetooth 5.0
- Barcode Symbology Supported: Aztec code, Base 32, Codabar, Code 11, Code 128, Code 39, Composite, Data Matrix, DotCode, EAN/JAN, GS1 DataBar, Han Xin, Italy Pharmacode, Korean 2 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI-Plessey, NW-7, OCR-A, OCR-B, PDF417, QR code, TLC39, UPC, US currency serial number
- Scan Mode: Single-pass
- Sensor Resolution: 1280× 960
- Battery Chemistry: Lithium polymer
- Drop Specification: 5 ft to concrete
- Image Sensor Type: 2D imager
- Interface: Bluetooth 5.0
- Light Source Wave Length: 525 nm
- Max Operating Temperature: 122 degree Fahrenheit
- Min Operating Temperature: 32 degree Fahrenheit
- Minimum Bar Width: 5 milli-in
- Operating Humidity: 5-95% (non-condensing)
- Print Contrast Signal (PCS): 20%
- Scanning Distance: 26 in
- Skew (Degrees): 60
- Scanner Functionality: Barcode scanner
- Feature Set: 15 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge), 8 kV ESD protection (indirect discharge), Capacitive trigger
- Kit: Presentation cradle kit
- Max Coverage Angle: 60
- OK Notification: Beeper, LED indicator, Vibration
- TTL Decoding: Decoded
- Cables: 1× USB-C to USB-A cable external 7 ft
- Included Accessories: FIPS presentation cradle
- Standards & Compliance: EN 50581:2012, EN 55032:2015+AC:2016, EN 55035:2017, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 61000-4-2, EN 62368-1:2014/AC:2015, EN 62471:2008, EN/IEC 63000:2018, FCC CFR47 Part 15 B Class B, FIPS 140-2, IEC 62368-1 Second Edition, IEC 62471:2006, IP65, REACH 2006/1907, REACH SvHC, RoHS 2011/65/EU, RoHS 2015/863/EU
- Listed Dimensions: Height 0.9 in, Width 1.8 in, Depth 4.3 in
- Weight: 3.07 oz
