Product Information

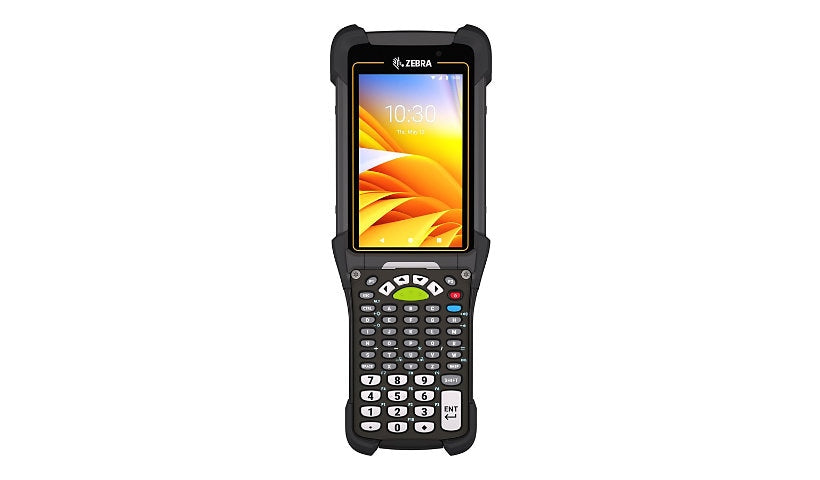

Zebra's MC9401 is a gun-style rugged mobile computer powered by an 8-core Qualcomm 4490 at 2.4 GHz with 128 GB of flash and microSD expansion. It offers Wi-Fi 6E, an advanced scan engine, camera and a backlit keypad with touchscreen.
Key Features:
- Qualcomm 4490, 8-core, 2.4 GHz
- 128 GB flash; microSD up to 2 TB
- Wi-Fi 6E and Bluetooth
- Gun-style with backlit keypad and touchscreen
- Advanced scan engine
Specifications:
- Brand: Zebra
- Manufacturer Part Number: MC9401-0G1R6DSS-NA
- Input Device Type: Alphanumeric keypad, Backlit keypad, Touchscreen
- Clock Speed: 2.4 GHZ
- Cores: 8-core
- Processor Brand: Qualcomm
- Processor Number: 4490
- Processor Type: Snapdragon
- Flash Memory Cards Supported: microSD, microSDHC, microSDXC
- Flash Memory Installed: 128 GB
- Max Flash Memory Cards Supported: 2 TB
- Memory Card Slot: microSD slot
- RAM Installed: 6 GB
- Security Protocols & Features: AES, EAP-GTC, EAP-PWD, EAP-TLS, EAP-TTLS, GCMP, LEAP, MS-CHAP, MS-CHAPv2, PAP, PEAPv0, PEAPv1, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3-Enterprise, WPA3-OWE, WPA3-Personal, WPA3-SAE
- Wireless Connectivity: Bluetooth 5.3, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11mc, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, NFC
- Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, NFC
- Expansion Slots: 1× microSD
- Interface Provided: 1× USB 2.0
- Cameras (compact list): Rear camera + front camera
- Rear Camera: Yes
- Rear Camera Resolution: 16 Megapixel
- Rear Features: Torch mode
- Rear Focus Adjustment: Automatic
- Rear Special Effects: HDR
- Sensor Resolution: 8 Megapixel
- Battery Capacity: 7000 mAH
- Battery Chemistry: Lithium ion
- Battery Name: PowerPrecision+
- Operating System Edition: Android
- Keys: 53
- Max Operating Temperature: 122 degree Fahrenheit
- Max Storage Temperature: 158 degree Fahrenheit
- Min Operating Temperature: -4 degree Fahrenheit
- Min Storage Temperature: -40 degree Fahrenheit
- Operating Humidity: 5-95% (non-condensing)
- Rear Camera Light Source: LED flash
- RFID Compliant Standards: Felica, ISO 14443A, ISO 14443B, ISO 15693
- Rugged: Yes
- Scan Element Type: 2D imager
- Sensor Type: 3-axis accelerometer with MEMS gyro, eCompass, Light sensor
- Feature Set: 2x2 MU-MIMO technology, Biometric facial recognition, ESD protection up to 15 kV (air), ESD protection up to 8 kV (direct), ESD protection up to 8 kV (indirect), Gun Form Factor, Interactive Sensor Technology (IST), Push-to-talk speaker, SE58 Extended Range Scan Engine with IntelliFocus technology, Upgradable to Android 17, Vibration
- PDA Software Type: Google Mobile Services
- Platform Supported: Android
- Product Category: Data collection terminal
- USB Host: Yes
