Product Information

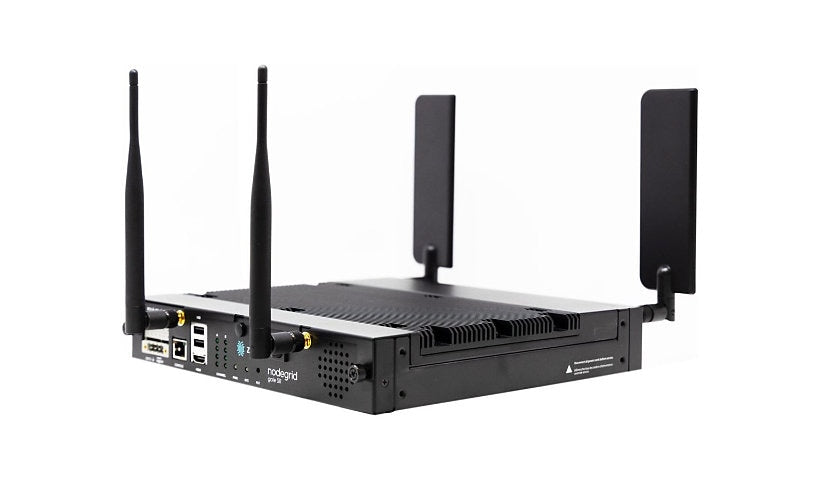

The ZPE Nodegrid Gate SR is a desktop services router that links remote sites to physical assets and helps virtualize more of the network. It has an 8-core Intel CPU, 16 GB DDR4 and 32 GB flash running Nodegrid OS. Ports include 8 RJ-45 serial, 5 gigabit RJ-45, 4 gigabit PoE+ RJ-45, 2 SFP+, HDMI, 2 USB 3.0, 2 USB 2.0, 2 GPIO and 1 digital output. It runs on 36 to 75 V DC with dual DC input and draws 45 W. Features include IPsec VPN, zero touch provisioning, clustering, REST APIs, SNMP, SSH and LDAP, RADIUS, TACACS+ or Kerberos login. The listing also shows a DSL modem type and a 5 GHz 866 Mbps rate while the connectivity is wired, so please confirm.
Key Features
- 8 RJ-45 serial ports
- 4 PoE+ and 5 gigabit LAN
- 2 SFP+ ports
- 8-core Intel, 16 GB DDR4
- Dual DC input, 36 to 75 V
- IPsec VPN, ZTP, REST API
Product Information
Product Type #2: DSL modem
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid
Model: Gate SR
Product Type: Router
Product Type: DSL modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTPs, IPSec, IPv4, IPv6, TCP/IP
Remote Management: SNMP, SSH, Telnet
Bridge & Router: Maximum data rate (5 GHz): 866 Mbps
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+, X.509 certificates
Encryption: 4096-bit RSA, MD5, SHA, TLS
Capacity: Simultaneous sessions: 1000+
Integrated Switch: 4-port switch
Internet of Things (IoT) Compatible: Yes
Operating System Edition: Nodegrid OS (64-bit)
Key Features: VPN support
Features: Auto-discovery, Break-over SSH support, Device clustering across multiple Nodegrid units, DHCP server, Direct access by port name, Gateway mode, NTP support, Port custom field support, Port icon configuration, Port search, Port sharing, RESTful APIs, User levels of access, WAN/ZPE Cloud, Zero Touch Auto Provisioning
Software Type: Command Line Interface (CLI)
Connectivity
Interface Provided: 1 x DO, 1 x HDMI - 19 pin HDMI Type A, 2 x 10GBase-T - SFP+, 2 x GPIO, 2 x SuperSpeed USB 3.0 - 9 pin USB Type A, 2 x USB 2.0 - 4 pin USB Type A, LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45, LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 8 x RJ-45
Power
Required Voltage: DC 36 - 75 volt
Power Consumption Operational: 45 watt
Memory and Processor
Processor Brand: Intel
Processors Installed: 1
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 9.5 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards: X.509
Warranty
Service Activation: No
