Product Information

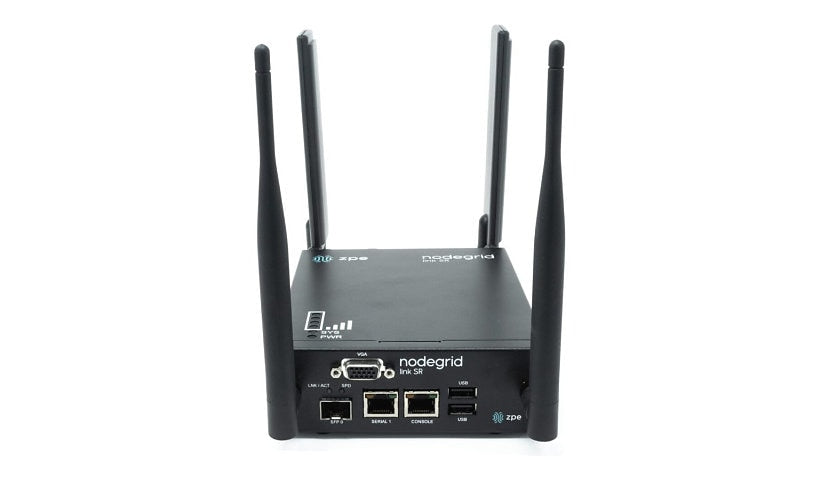

The ZPE Nodegrid Link SR (LSR-24-4G-W5) is a compact desktop services router with LTE, dual band Wi-Fi 5 and a serial console port, not a dedicated multi port console server. It has one gigabit PoE RJ-45, one SFP, one RJ-45 serial, two USB 2.0, VGA, two digital outputs and two GPIO, with two SIM slots and four external antennas. It runs 64-bit Nodegrid OS with 4 GB RAM and 16 GB flash, supports clustering, REST APIs, zero touch provisioning, IPsec and over 350 sessions, with Kerberos, LDAP, RADIUS, TACACS+ and X.509.
Key Features
- Router, not a console server
- LTE with 2 SIM slots
- Wi-Fi 5 dual band
- 1 serial console port
- PoE GbE plus SFP
- Nodegrid OS, REST API
Product Information
Product Type #2: DSL modem / wireless cellular modem
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid
Model: Link SR
Product Type: Wireless router
Product Type: DSL modem / wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: HTTPs, IPSec, IPv4, IPv6, TCP/IP
Remote Management: SNMP, SSH, Telnet
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+, X.509 certificates
Encryption: 4096-bit RSA, MD5, SHA, TLS
Capacity: Simultaneous sessions: 350+
Wireless LAN: 802.11a/b/g/n/ac
Cellular Data Connectivity Technology: LTE
Antennas: 4
Antenna Form Factor: External
Operating System Edition: Nodegrid OS (64-bit)
Features: Auto-discovery, Break-over SSH support, Device clustering across multiple Nodegrid units, Direct access by port name, Dual core CPU, Dual-stream (2x2), NTP support, Port custom field support, Port icon configuration, Port search, Port sharing, RESTful APIs, User levels of access, Zero Touch Auto Provisioning
Software Type: Command Line Interface (CLI)
Connectivity
Interface Provided: 2 x DO, 2 x GPIO, 2 x USB 2.0 - 4 pin USB Type A, LAN: 1 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45, LAN: 1 x SFP (mini-GBIC), Serial: 1 x RJ-45, Video: 1 x VGA - 15 pin HD D-Sub (HD-15)
Expansion Slots: 2 (total) / 2 (free) x SIM
Memory and Processor
Processors Installed: 1
RAM Installed: 4 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 20 - 90% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 2.2 inch
Width: 5.1 inch
Depth: 6.7 inch
Weight: 2.29 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, X.509
