Product Information

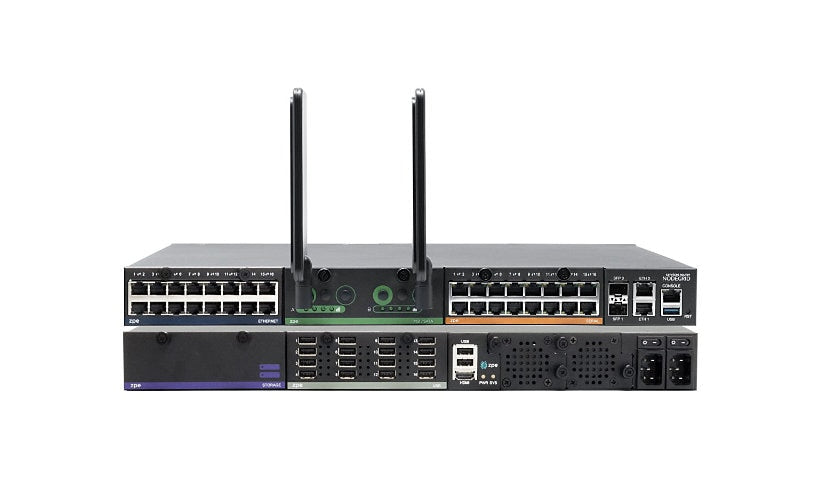

The ZPE Nodegrid Net SR (NSR-LITE-DAC) is an Intel based modular services router and console server with vendor neutral software and cloud management. It has 8 GB DDR4 and 32 GB storage, two gigabit RJ-45 and two SFP+ ports, an RS-232 port, an RJ-45 console, HDMI, one USB 3.0 and two USB 2.0, with six expansion slots (five free). It supports NFV, clustering across Nodegrid units, IPsec, IPv6, a REST API, SNMP, SSH and Kerberos, LDAP, RADIUS and TACACS+ login. It has an internal power supply and power cord.
Key Features
- Console server and router
- Intel CPU, 8 GB RAM
- 32 GB storage
- 2 x GbE, 2 x SFP+
- 6 expansion slots
- NFV and clustering
Product Information
Product Type #2: DSL modem
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid
Model: Net SR
Product Type: Router
Product Type: DSL modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTPs, IPSec, IPv4, IPv6, TCP/IP
Remote Management: RESTful API, SNMP, SSH, Telnet
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+, X.509 certificates
Encryption: 4096-bit RSA, MD5, SHA, TLS
Features: 8-core CPU, Backup-user authentication support, Break-over SSH support, Device clustering across multiple Nodegrid units, Global time zone support, IP forwarding support, Modular design, Network Function Virtualization (NFV), NTP support, Port custom field support, Port icon configuration, Port search, Port sharing, Strong password enforcement, System event syslog, User levels of access, User-access lists per port, Virtual Media support, Zero Touch Auto Provisioning
Connectivity
Interface Provided: 1 x HDMI - 19 pin HDMI Type A, 1 x RS-232, 1 x SuperSpeed USB 3.0 - 9 pin USB Type A, 2 x USB 2.0 - 4 pin USB Type A, Console: 1 x RJ-45, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, LAN: 2 x Ethernet - SFP+
Expansion Slots: 6 (total) / 5 (free) x expansion slot
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Intel
Processors Installed: 1
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.7 inch
Width: 13.1 inch
Depth: 17.2 inch
Weight: 10.8 lbs
Included Items
Included Accessories: Power cord
