Product Information

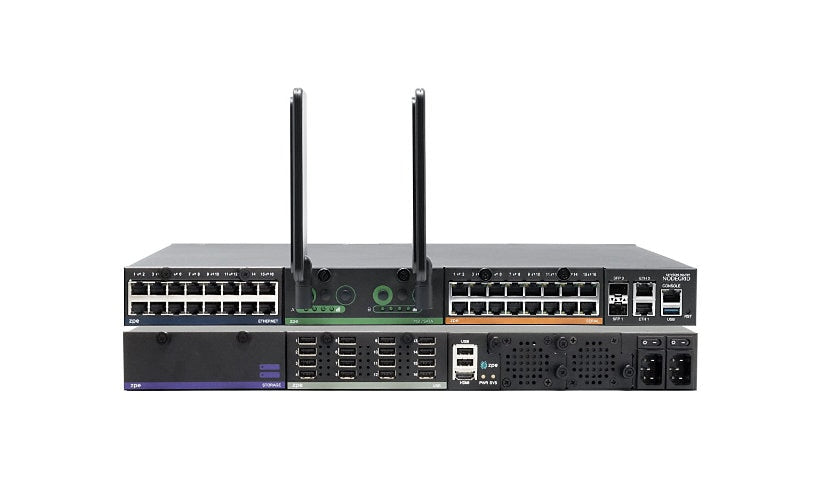

The ZPE Nodegrid Net SR is a modular services router built for out of band management and network function virtualization. It has an 8-core Intel CPU, 16 GB DDR4 and 32 GB flash, and offers 6 expansion slots with 5 free. Built-in ports include 2 gigabit RJ-45, 2 SFP+, an RJ-45 console, HDMI, VGA, 2 USB 3.0 and 2 USB 2.0. It adds firewall, VPN, IP forwarding, syslog, strong password rules and SNMP, SSH and Telnet management, with Kerberos, LDAP, RADIUS, TACACS+ and X.509 login. An internal power supply and power cord are included. The listing also shows a DSL modem type, so please confirm.
Key Features
- Modular, 6 expansion slots
- 8-core Intel, 16 GB DDR4
- 2 gigabit RJ-45, 2 SFP+
- Firewall, VPN, NFV
- RJ-45 console, HDMI, VGA
- Power cord included
Product Information
Product Type #2: DSL modem
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid
Model: Net SR
Product Type: Router
Product Type: DSL modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTPs, IPSec, IPv4, IPv6, TCP/IP
Remote Management: SNMP, SSH, Telnet
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+, X.509 certificates
Encryption: 4096-bit RSA, MD5, SHA, TLS
Key Features: Firewall, VPN support
Features: 8-core CPU, Backup-user authentication support, Break-over SSH support, Device clustering across multiple Nodegrid units, Global time zone support, IP forwarding support, Modular design, Network Function Virtualization (NFV), NTP support, Port custom field support, Port icon configuration, Port search, Port sharing, Strong password enforcement, System event syslog, User levels of access, User-access lists per port, Virtual Media support, Zero Touch Auto Provisioning
Connectivity
Interface Provided: 1 x HDMI - 19 pin HDMI Type A, 2 x SuperSpeed USB 3.0 - 9 pin USB Type A, 2 x USB 2.0 - 4 pin USB Type A, Console: 1 x RJ-45, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, LAN: 2 x Ethernet - SFP+, Video: 1 x VGA - 15 pin HD D-Sub (HD-15)
Expansion Slots: 6 (total) / 5 (free) x expansion slot
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Intel
Processors Installed: 1
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Dimensions and Weight
Height: 1.7 inch
Width: 13.1 inch
Depth: 17.2 inch
Weight: 10.8 lbs
Included Items
Included Accessories: Power cord
Warranty
Service Activation: No
Not sure this device fits your network? Send us your current equipment models and what you need to monitor or manage, and the DatorPro team will confirm compatibility before you order.
