Product Information

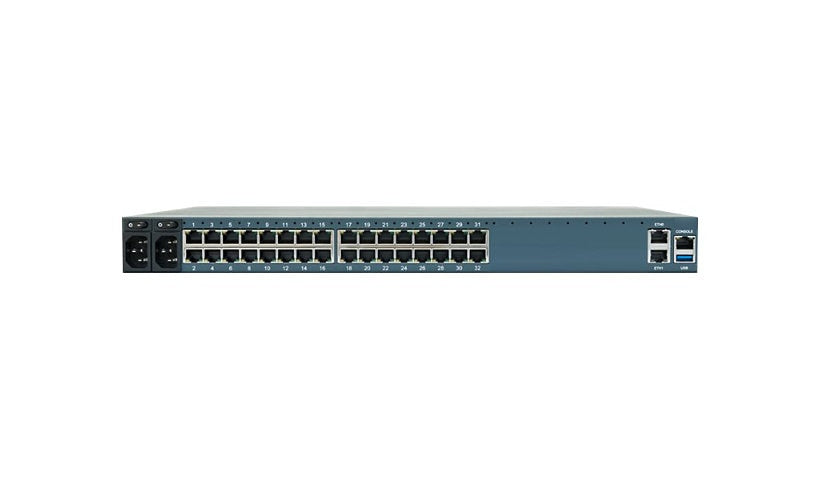

The ZPE Nodegrid NSC-T32S-STND-DAC-B is the 32 port version of the Nodegrid S series serial console with back to front airflow. It offers thirty-two RS-232 RJ-45 ports with auto switching, two gigabit RJ-45, one USB 3.0, thirteen USB 2.0, HDMI out and an RJ-45 console, with 4 GB RAM and a 32 GB mSATA SSD. Features include ZTP, e-mail and syslog alerts and AD, LDAP, RADIUS and TACACS+ login, with web, SSH, SNMP and Telnet management. It has two power supplies in 1U.
Key Features
- 32 RS-232 RJ-45 ports
- Auto switching pinout
- 2 x GbE, 14 USB ports
- 4 GB RAM, 32 GB SSD
- ZTP, AD, TACACS+
- Dual PSU, back to front air
Product Information
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid S Series
Product Type: Console server
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232
Network Standard: DHCP, NTP, TCP/IP
Remote Management: HTTP, HTTPS, SNMP, SSH, SSH-2, Telnet
Authentication Method: Active Directory, LDAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: MD5, SHA
Features: Auto-switching, E-mail notification, Syslog support, Zero-touch provisioning (ZTP)
Connectivity
Ports: 32
Interface Provided: 1 x console - RJ-45, 1 x HDMI output, 1 x USB 3.0 - Type A, 13 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45, 32 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Memory and Processor
Hard Drive Form Factor (metric): mSATA
RAM Installed: 4 GB
Memory Technology: SDRAM
Hard Drive Capacity: 32 GB
Hard Drive Form Factor: mSATA
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.3 inch
Weight: 10.8 lbs
Certifications and Listing
Compliant Standards #2: CSA 22.2 No. 60950-1, EAC, EN 55032, EN 60950-1, EN55024, FCC Class A certified, ICES-003 Class A, IEC 60950-1, RCM, RoHS, UL 60950-1, VCCI Class A
Compliant Standards: X.509
Compliant Standards: CSA 22.2 No. 60950-1, EAC, EN 55032, EN 60950-1, EN55024, FCC Class A certified, ICES-003 Class A, IEC 60950-1, RCM, RoHS, UL 60950-1, VCCI Class A
