Product Information

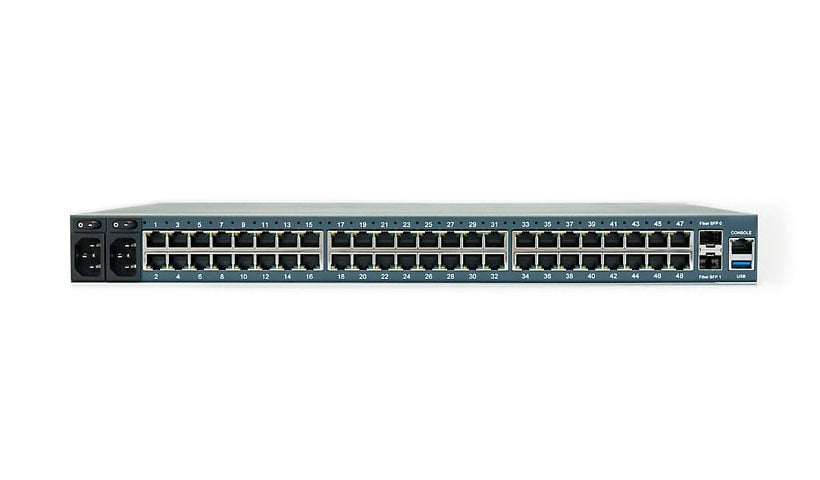

The ZPE Nodegrid NSC-T48S-STND-DAC-B-SFP is a 48 port Intel based serial console with SFP+ fiber uplinks and two AC power supplies. It has forty-eight RS-232 RJ-45 ports with auto switching pinout, two gigabit RJ-45, two 10G SFP+, one USB 3.0, thirteen USB 2.0, HDMI out and an RJ-45 console, with a dual core CPU, 4 GB RAM and a 32 GB SSD. It offers 20 MB buffering per port, auto discovery, NFV, PXE boot, geo fencing and over 1000 sessions, with Kerberos, LDAP, RADIUS and TACACS+, in 1U.
Key Features
- 48 RS-232 RJ-45 ports
- 2 x 10G SFP+, 2 x GbE
- Auto switching pinout
- Dual core, 4 GB, 32 GB SSD
- 1000+ sessions, NFV
- Dual AC power, 1U
Product Information
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid Serial Console S Series
Product Type: Console server
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, NFS, NTP, TCP/IP
Remote Management: HTTPS, SNMP, SSH, SSH-2, Telnet, TLS
Authentication Method: Kerberos, LDAP, RADIUS, TACACS+
Encryption: TLS, TLS 1.1, TLS 1.2
Capacity: Simultaneous sessions: 1000+
Wireless LAN: LTE
Operating System Edition: Linux (64-bit)
Features: 20 MB per local port buffering, Auto-discovery, Auto-switching, Break-over SSH support, Command-line interface (CLI) management, E-mail notification, Fine grain access control, Geo fencing, Network Function Virtualization (NFV), Orchestration Integration & Automation, Port custom field support, Port icon configuration, Port search, Port sharing, PXE boot, Root shell, Syslog support, Time stamp & rotation for data logging, Trusted Platform Module (TPM), User levels of access, VPN support, Web GUI management portal, Zero-touch configuration, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Interface Provided: 1 x console - RJ-45, 1 x HDMI output, 1 x USB 3.0 - Type A, 13 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45, 2 x 10Gb Ethernet - SFP+, 48 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): mSATA
Processor Brand: Intel
Processors Installed: 1
RAM Installed: 4 GB
Memory Technology: DDR3 SDRAM
Total Processor Supported: 1
Hard Drive Capacity: 32 GB
Hard Drive Form Factor: mSATA
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 20 - 90% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 12.3 inch
Depth: 17.4 inch
Weight: 10.8 lbs
Certifications and Listing
Compliant Standards: X.509
