Product Information

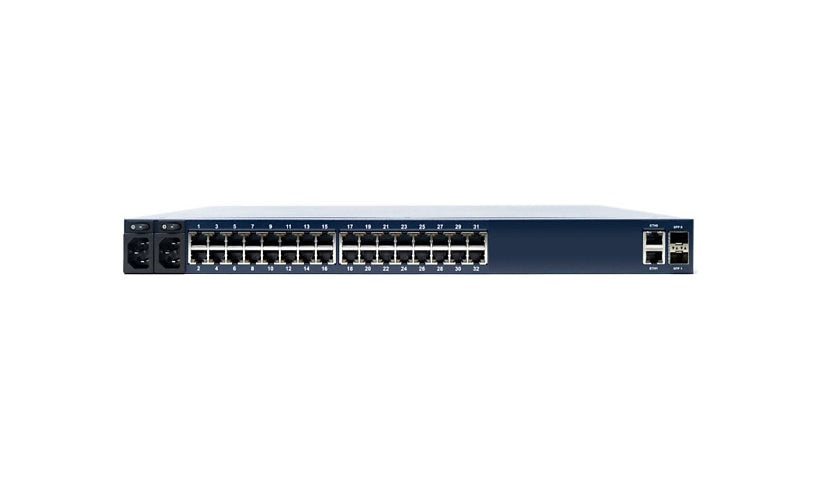

The ZPE Nodegrid Serial Console Plus Core Edition (NSCP-T32R-CORE-DAC) is a cloud managed 32 port console server running 64-bit Nodegrid OS on an Intel CPU with 4 GB DDR4 and a 32 GB SSD. It has Cisco straight pinout, two SIM slots, TPM 2.0 and UEFI Secure Boot, VPN client and server, firewall, VLAN, LACP, LLDP and gRPC. It handles more than 100 sessions, supports Kerberos, LDAP, RADIUS, SAML 2.0, TACACS+ and X.509, and is managed by SSH, SNMP v1 to v3 and syslog. Dual redundant AC supplies draw about 45 W in 1U.
Key Features
- 32 serial ports
- Intel CPU, 4 GB, 32 GB SSD
- TPM 2.0, Secure Boot
- 2 SIM slots
- SAML 2.0, TACACS+
- Dual redundant PSU, 1U
Product Information
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid Serial Console Plus
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, HTTPs, IPv4, IPv6, TCP/IP
Remote Management: SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Syslog, Telnet
Authentication Method: Kerberos, LDAP, RADIUS, SAML 2.0, TACACS+, X.509 certificates
Encryption: MD5, SHA, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Maximum number of sessions: 100+
Operating System Edition: Nodegrid OS (64-bit)
Features: 4096-bit encryption, Cisco straight pinout, Command-line interface (CLI) management, Dual core CPU, E-mail notification, Failover support, Firewall protection, IP forwarding support, LACP support, LLDP support, Port sharing, Remote Procedure Call (RPC, gRPC), Remote Procedure Call (RPC), TCP support, Trusted Platform Module 2.0 (TPM 2.0), UEFI Secture Boot, VLAN support, VPN client, VPN Server, Zero-touch provisioning (ZTP)
Connectivity
Ports: 32
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 45 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
Processor Brand: Intel
Processor Type: Quad Core
Processors Installed: 1
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Hard Drive Capacity: 32 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, Reset, System
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 12.3 inch
Depth: 17.4 inch
Weight: 11.61 lbs
Certifications and Listing
Compliant Standards: X.509
