Product Information

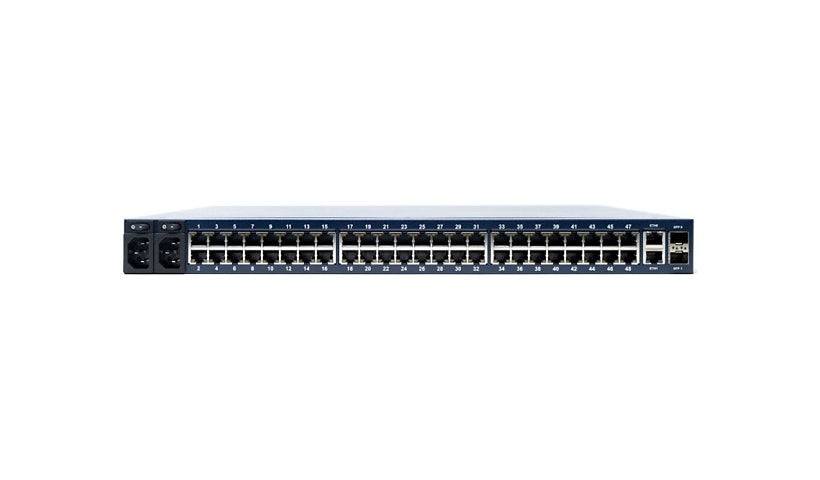

The ZPE Nodegrid Serial Console Plus Core Edition (NSCP-T48R-CORE-DDC) is the dual DC power version of the 48 port console server. It has forty-eight RS-232 ports, 10GbE support and two SIM slots, running 64-bit Nodegrid OS on an Intel CPU with 4 GB DDR4 and a 32 GB SSD. It offers 20 MB buffering per port, offline logging, two factor login with Duo, SAML 2.0, AD, Kerberos, LDAP, RADIUS and TACACS+, plus firewall, LACP and LLDP, with more than 100 sessions. It fits 1U and comes with two power cords and a console cable.
Key Features
- 48 RS-232 serial ports
- Dual DC power version
- Intel CPU, 32 GB SSD
- Duo and SAML 2.0 login
- 20 MB buffer per port
- 1U, cords included
Product Information
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid Serial Console Plus
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, IPv4, IPv6
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Syslog, Telnet
Authentication Method: Active Directory, Duo, Kerberos, LDAP, RADIUS, SAML 2.0, Secure Shell (SSH), TACACS+, X.509 certificates
Encryption: MD5, RSA, SHA, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Port buffer (MB): 20 MB, Simultaneous sessions: 100+
Operating System Edition: Nodegrid OS (64-bit)
Features: 2-factor authentication, 20 MB per local port buffering, 4096-bit encryption, Break-over SSH support, Failover support, Fine grain access control, Firewall protection, Gen 3 Out-of-Band Management Integration, IP forwarding support, LACP support, LLDP support, Off-line data logging, Orchestration Integration & Automation, Port custom field support, Port icon configuration, Port search, Port sharing, Remote Procedure Call (RPC, gRPC), Remote Procedure Call (RPC), RESTful APIs, Role based access control, Signed OS, TCP support, Time stamp & rotation for data logging, Trusted Platform Module 2.0 (TPM 2.0), UEFI Secture Boot, UEFI Secure Boot, User levels of access, VLAN support, WAN/ZPE Cloud, Web GUI management portal, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Intel
Processor Type: Quad Core
Processors Installed: 1
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Hard Drive Capacity: 32 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, Reset, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.3 inch
Included Items
Included Accessories: 2 power cords
Cables: 1 x console cable
Certifications and Listing
Compliant Standards: X.509
