Product Information

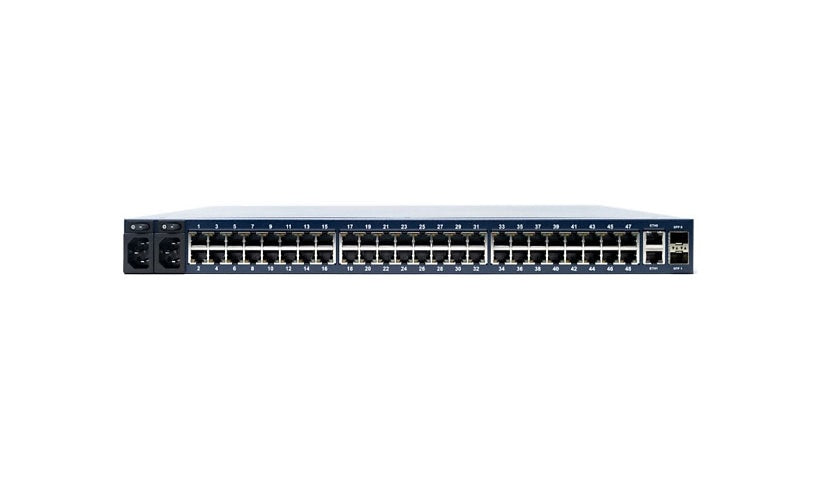

The ZPE Nodegrid Serial Console Plus Core Edition (NSCP-T48R-CORE-SAC) is a 48 port cloud managed console server with a single AC supply installed (two supported). It runs 64-bit Nodegrid OS on an Intel CPU with 4 GB DDR4 and a 32 GB SSD, with Cisco straight pinout, two SIM slots, TPM 2.0, UEFI Secure Boot, VPN, firewall, VLAN, LACP, LLDP and gRPC. It handles over 100 sessions with Kerberos, LDAP, RADIUS, SAML 2.0, TACACS+ and X.509, draws about 45 W and fits 1U.
Key Features
- 48 serial ports
- Single AC PSU installed
- Intel CPU, 32 GB SSD
- TPM 2.0, Secure Boot
- SAML 2.0, TACACS+
- 1U, cloud managed
Product Information
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid Serial Console Plus
Product Type: Console server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, HTTPs, IPv4, IPv6, TCP/IP
Remote Management: SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Syslog, Telnet
Authentication Method: Kerberos, LDAP, RADIUS, SAML 2.0, TACACS+, X.509 certificates
Encryption: MD5, SHA, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Maximum number of sessions: 100+
Operating System Edition: Nodegrid OS (64-bit)
Features: 4096-bit encryption, Cisco straight pinout, Command-line interface (CLI) management, Dual core CPU, E-mail notification, Failover support, Firewall protection, IP forwarding support, LACP support, LLDP support, Port sharing, Remote Procedure Call (RPC, gRPC), Remote Procedure Call (RPC), TCP support, Trusted Platform Module 2.0 (TPM 2.0), UEFI Secture Boot, VLAN support, VPN client, VPN Server, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 45 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Memory and Processor
Processor Brand: Intel
Processor Type: Quad Core
Processors Installed: 1
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Hard Drive Capacity: 32 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, Reset, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.3 inch
Certifications and Listing
Compliant Standards: X.509
