Product Information

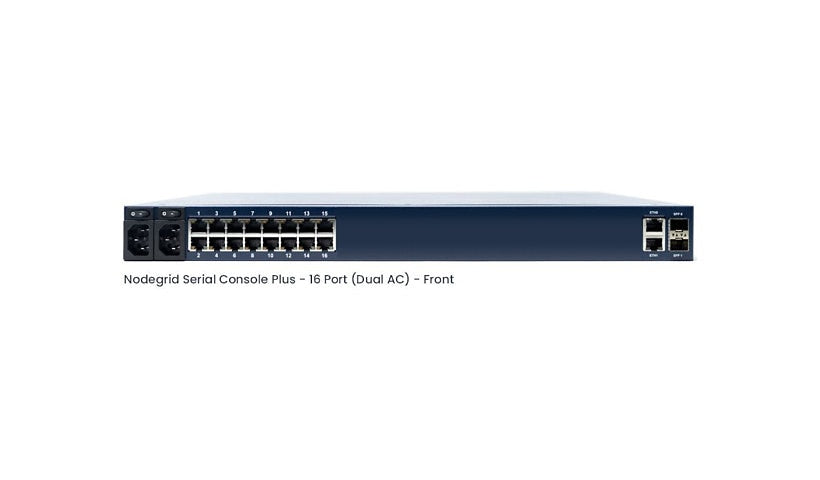

The ZPE Nodegrid Serial Console Plus (ZPE-NSCP-T16R-STND-DAC) is a 16 port cloud managed console server with Cisco straight pinout, two gigabit RJ-45, two 10G SFP+, two USB 3.0, HDMI out and an RJ-45 console. It runs Nodegrid OS on an Intel CPU with 4 GB DDR4 and a 32 GB SSD, with 20 MB buffering per port, clustering, BGP, WireGuard, IPsec, NetFlow, IPMI 2.0 and over 1000 sessions, plus Duo, SAML 2.0, AD, LDAP, RADIUS and TACACS+. A 90 day ZPE Cloud subscription is included. 1U.
Key Features
- 16 RS-232 RJ-45 ports
- 2 x 10G SFP+, 2 x GbE
- Intel CPU, 32 GB SSD
- BGP, WireGuard, IPsec
- 1000+ sessions
- 90 day ZPE Cloud
Product Information
Brand: ZPE
Manufacturer: ZPE Systems
Product Line: ZPE Nodegrid Serial Console Plus
Product Type: Console server
Packaged Quantity: 1
Color Category: Blue
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, FTP, IPSec, IPv4, IPv6, NFS, TCP/IP, WireGuard
Remote Management: HTTPS, IPMI 2.0, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Routing Protocol: BGP, RIP
Authentication Method: Active Directory, Duo, Kerberos, LDAP, RADIUS, SAML 2.0, TACACS+
Encryption: 192-bit AES, 256-bit AES, DES, MD5, SHA-224, SHA-256, SHA-384, SHA-512, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Capacity: Simultaneous sessions: 1000+
Operating System Edition: Nodegrid OS (64-bit)
Features: 2-factor authentication, 20 MB per local port buffering, Auto-discovery, Break-over SSH support, Cisco straight pinout, DHCP client, DHCP server, E-mail notification, Fine grain access control, Firewall protection, Gen 3 Out-of-Band Management Integration, Geo fencing, IP forwarding support, Layer 3 routing, LLDP support, Multi-Unit clustering, NetFlow, Off-line data logging, OpenSSL VPN, Orchestration Integration & Automation, Port custom field support, Port icon configuration, Port search, Port sharing, Quad-core CPU, Remote Procedure Call (RPC, gRPC), RESTful APIs, Role based access control, Root shell, Self Encrypting SSD, Signed OS, SSHFS support, Syslog support, Time stamp & rotation for data logging, Trusted Platform Module 2.0 (TPM 2.0), UEFI Secure Boot, User levels of access, VLAN support, WAN/ZPE Cloud, Web console, Web GUI management portal, Windows Sharing, Zero-touch provisioning (ZTP)
Software Type: ZPECloud.com (90 days subscription)
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 1 x HDMI output, 16 x RS-232 - RJ-45, 2 x 1000Base-T - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x USB 3.0 - Type A
Power
Device Type: Internal power supply
Memory and Processor
Hard Drive Form Factor (metric): mSATA
Processor Brand: Intel
Processors Installed: 1
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Total Processor Supported: 1
Hard Drive Capacity: 32 GB
Hard Drive Form Factor: mSATA
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Power, Reset, System
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.3 inch
Weight: 11.61 lbs
Certifications and Listing
Compliant Standards: X.509
Warranty
Service Activation: No
