Product Information

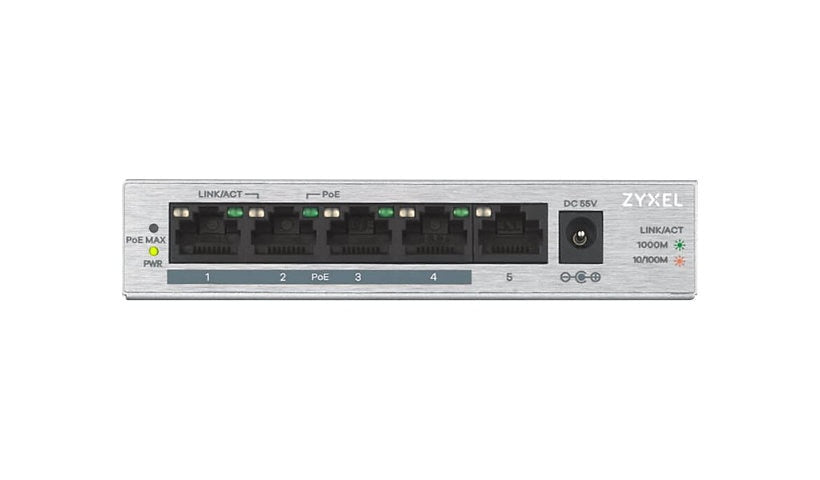

The Zyxel GS1005HP has five Gigabit ports, four of them PoE+ at up to 30 W each on a 60 W budget. It is fanless, supports QoS and loop prevention, and can be placed on a desk or wall.
Key Features
- 4 x Gigabit PoE+ ports + 1 x Gigabit port
- 60 W PoE budget
- 10 Gbps switching capacity
- QoS and loop prevention
- Fanless, desktop or wall mount
Product Information
Brand: ZyXEL
Manufacturer: Zyxel USA
Product Line: Zyxel
Model: GS1005HP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Silver
Network and Communication
Switching Type: Gigabit Ethernet
Performance: Switching capacity: 10 Gbps
MAC Address Table Size: 2K entries
Jumbo Frame Support: 9KB
Features: 128KB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Energy-Efficient Ethernet (EEE), Fanless, Flow control, Full duplex capability, Loop prevention, Quality of Service (QoS), Store and forward
Connectivity
Ports: 5
Port Quantity: 4
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 1
Ports Type (2nd): 10/100/1000
Interface Provided: 1 x 1000Base-T RJ-45, 4 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 72 watt
PoE Budget: 60 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity/speed, PoE, Power
Dimensions and Weight
Height: 1 inch
Width: 4.8 inch
Depth: 3 inch
Weight: 8.29 ounce
Included Items
Included Accessories: Rubber pad
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Compliant Standards: BSMI, EMC, FCC, LVD
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
